1PH81071DD022BA1

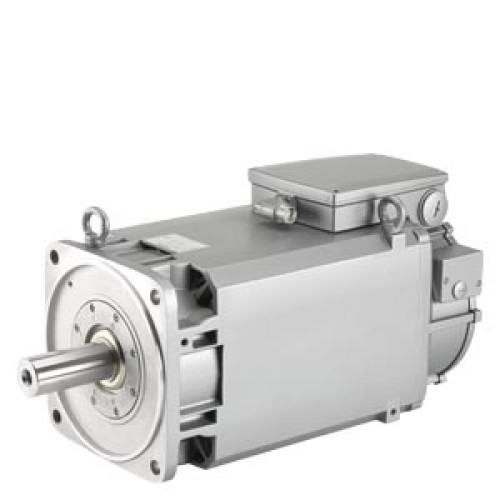

SIMOTICS M compact asynchronous motor 1000 r/min 6.3 kW 60 Nm 17.5 A 307 V 1150 r/min 7.2 kW 60 Nm 17.5 A 348 V 1350 r/min 8 kW 57

Manufacturer's No: 1PH8107-1DD02-2BA1     Manufacturer: Siemens
SIMOTICS M compact asynchronous motor 1000 r/min 6.3 kW 60 Nm 17.5 A 307 V 1150 r/min 7.2 kW 60 Nm 17.5 A 348 V 1350 r/min 8 kW 57 Nm 17 A 400 V 1500 r/min 8.8 kW 56 Nm 17 A 440 V forced ventilation;

Availability On Request

POA
  • Model: SIMOTICS M Compact Asynchronous Motor
  • Speed and Power Ratings:
    • 1000 r/min: 6.3 kW, 60 Nm, 17.5 A, 307 V
    • 1150 r/min: 7.2 kW, 60 Nm, 17.5 A, 348 V
    • 1350 r/min: 8 kW, 57 Nm, 17 A, 400 V
    • 1500 r/min: 8.8 kW, 56 Nm, 17 A, 440 V
  • Cooling: Forced ventilation; direction of air flow DE --> NDE
  • Protection: IP55 degree of protection
  • Encoder: Incremental encoder 22-bit with commutation position (encoder IC22DQ) with DRIVE-CLiQ interface
  • Design: IM B5 (IMV 1, IM V3)
  • Shaft: With fitted key, half-key balancing
  • Bearing: Standard with fixed bearing
  • Vibration Severity Grade: R/A
  • Shaft and Flange Accuracy: R

Read more

  • Terminal Box: Located above
  • Cable Entry: On the right
  • Signal Connection: D-end


Product

Manufacturer Material ID -
1PH8107-1DD02-2BA1
Net Weight -
87.00kg

Additional Product Information

Commodity Code -
85015230
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
8.04767E+11

Availability On Request

POA
