1PQ84054PB80-Z B02+B21+B31+B32+B33+H70

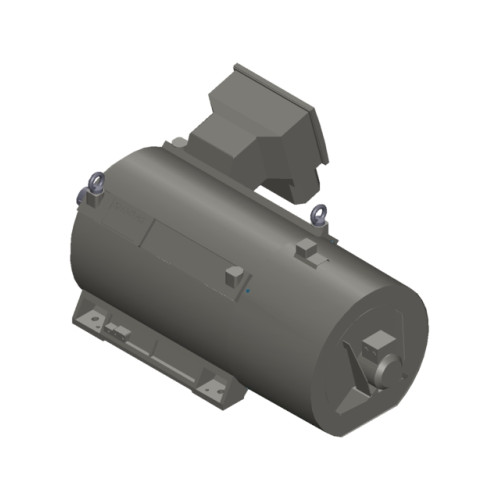

SIMOTICS TN series N-Compact Low-voltage motor, squirrel-cage rotor, IP55 with external fan, with st

Manufacturer's No: 1PQ8405-4PB80-Z B02+B21+B31+B32+B33+H70     Manufacturer: Siemens
SIMOTICS TN series N-Compact Low-voltage motor, squirrel-cage rotor, IP55 with external fan, with st

Availability On Request

POA
  • SIMOTICS TN series N-Compact Low-voltage motor
  • Squirrel-cage rotor, IP55 with external fan
  • Suitable for operation on SINAMICS
  • Temperature class F
  • 4-pole motor
  • Power: 630 kW
  • Frequency: 50 Hz
  • Voltage: 400 VD/690 VY
  • Size: 400
  • Insulated NDE bearing

Read more

  • Acceptance test certificate 3.1 according to EN 10204
  • Operating instructions on CD-ROM included
  • Electrical data sheet and order dimension drawing documents provided
  • Routine test certificate included
  • Mounting of the rotary pulse encoder LL 861 900 220 with 1024 pulses


Product

Manufacturer Material ID -
1PQ8405-4PB80-Z B02+B21+B31+B32+B33+H70
Net Weight -
3,101.30kg

Additional Product Information

Commodity Code -
85015394
Country of Origin -
DE
Export Control Regulations -
N / N
UNSPSC -
26101110

Availability On Request

POA
