1SCA022613R9280

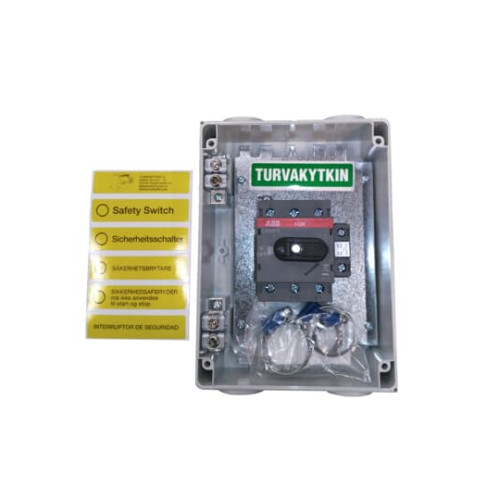

EMC safety switch, 3-p. 400V AC23 45A, 22kW. Plastic enclosure. IP65. RedYellow Selector handle. Interlocked cover. Defeatable int

Manufacturer's No: OTE36A3M     Manufacturer: ABB
EMC safety switch, 3-p. 400V AC23 45A, 22kW. Plastic enclosure. IP65. RedYellow Selector handle. Interlocked cover. Defeatable interlocking.

Availability On Request

£286.61
  • EMC safety switch
  • 3-pole
  • 400V AC23
  • 45A, 22kW
  • Plastic enclosure
  • IP65 rated
  • Red and yellow selector handle
  • Interlocked cover
  • Defeatable interlocking


Product

Manufacturer Material ID -
OTE36A3M
Net Weight -
0.90kg

Additional Product Information

Commodity Code -
85363030
Country of Origin -
FI
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Number of auxiliary contacts as normally closed contact -
-
Conditioned rated short-circuit current Iq -
- kiloampere
Type of electrical connection of main circuit -
UN
Rated short-time withstand current lcw -
- kiloampere
Degree of protection (NEMA) -
UN
Rated operation power at AC-3, 400 V -
22 Kilowatt
Type of control element -
Turn button
Suitable for ground mounting -
Number of auxiliary contacts as normally open contact -
1
Rated permanent current Iu -
80 Ampere
Number of poles -
3
Rated operating voltage -
750 Volt
Degree of protection (IP), front side -
IP65
Number of auxiliary contacts as change-over contact -
0
Number of switches -
1
Interlockable -
Version as main switch -
Version as safety switch -
Version as maintenance-/service switch -
Rated operation power at AC-23, 400 V -
22 Kilowatt
Colour control element -
Red
Suitable for front mounting 4-hole -
Max. rated operation voltage Ue AC -
750 Volt
Device construction -
Complete device in housing
Rated permanent current at AC-21, 400 V -
63 Ampere
Switching power at 400 V -
22 Kilowatt
Rated permanent current at AC-23, 400 V -
45 Ampere
ABB

Availability On Request

£286.61
