1SCA121455R1001

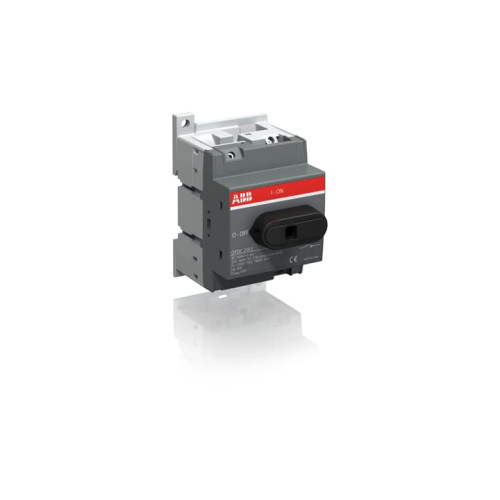

OTDC25F2 DC Switch-disconnector, Terminal bolt kit included, Handle and shaft need to be ordered separately, Base mounting, IEC 66

Manufacturer's No: OTDC25F2     Manufacturer: ABB
OTDC25F2 DC Switch-disconnector, Terminal bolt kit included, Handle and shaft need to be ordered separately, Base mounting, IEC 660 VDC 25 A single circuit, IEC 1000 VDC 16 A single circuit

Availability On Request

£72.76
  • Model: OTDC25F2
  • DC Switch-disconnector
  • Base mounting
  • IEC 660 VDC, 25 A single circuit
  • IEC 1000 VDC, 16 A single circuit
  • Terminal bolt kit included
  • Handle and shaft need to be ordered separately


Product

Manufacturer Material ID -
OTDC25F2
Net Weight -
0.17kg

Additional Product Information

Commodity Code -
85363030
Country of Origin -
EE
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Conditioned rated short-circuit current Iq -
- kiloampere
Rated operation power at AC-23, 400 V -
- Kilowatt
Max. rated operation voltage Ue AC -
- Volt
Rated permanent current at AC-21, 400 V -
- Ampere
Switching power at 400 V -
- Kilowatt
Suitable for ground mounting -
Number of auxiliary contacts as normally open contact -
0
Number of auxiliary contacts as normally closed contact -
0
Rated permanent current Iu -
32 Ampere
Number of poles -
2
Rated operating voltage -
1000 Volt
Degree of protection (IP), front side -
IP20
Number of auxiliary contacts as change-over contact -
0
Number of switches -
1
Interlockable -
Type of electrical connection of main circuit -
Screw connection
Type of control element -
Short thumb-grip
Version as main switch -
Version as maintenance-/service switch -
Rated short-time withstand current lcw -
0.8 kiloampere
Colour control element -
Black
Suitable for distribution board installation -
Device construction -
Built-in device fixed built-in technique
Degree of protection (NEMA) -
1
ABB

Availability On Request

£72.76
