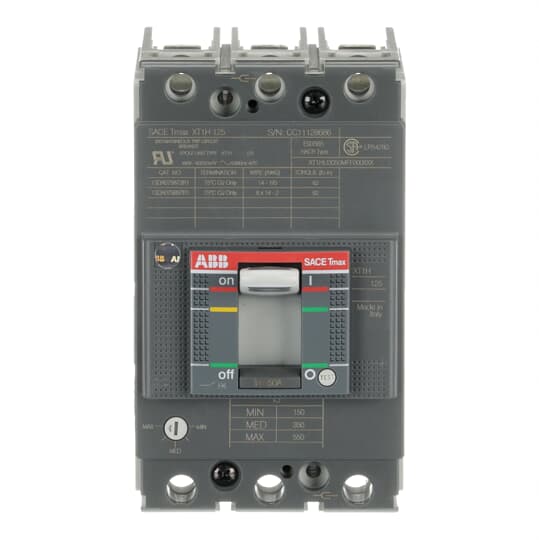

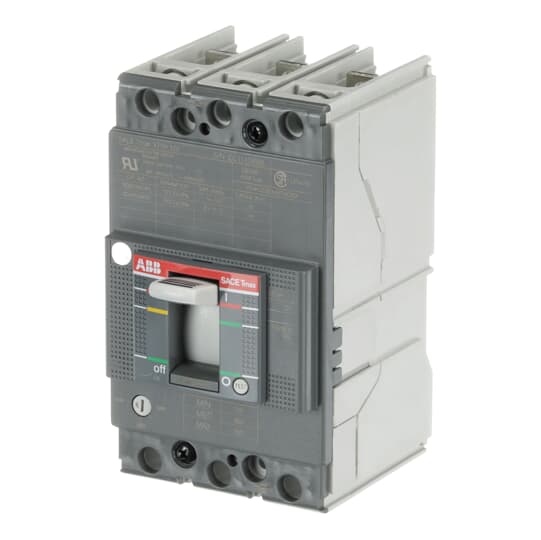

1SDA074728R1

XT1H 125 MCP In=50 3p F F UL/CSA

Manufacturer's No: 1SDA074728R1     Manufacturer: ABB
XT1H 125 MCP In=50 3p F F UL/CSA

Availability On Request

£386.92
  • Circuit Breaker Model: XT1H 125 MCP
  • Rated Current: 50 A
  • Number of Poles: 3
  • Fixed three-pole design with front terminals
  • Magnetic release
  • UL/CSA certified
  • Adjustable current range: 150 A to 550 A


Product

Manufacturer Material ID -
1SDA074728R1
Net Weight -
1.10kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
UNSPSC -
32151705

Technical Specification

Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
65 kiloampere
Adjustment range undelayed short-circuit release -
150 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Position of connection for main current circuit -
Front
Power loss -
3.1 Watt
Rated permanent current Iu -
50 Ampere
Rated voltage -
347 Volt
Type of control element -
Toggle
Type of electrical connection of main circuit -
Bolt connection
ABB

Availability On Request

£386.92
