1SDA100353R1

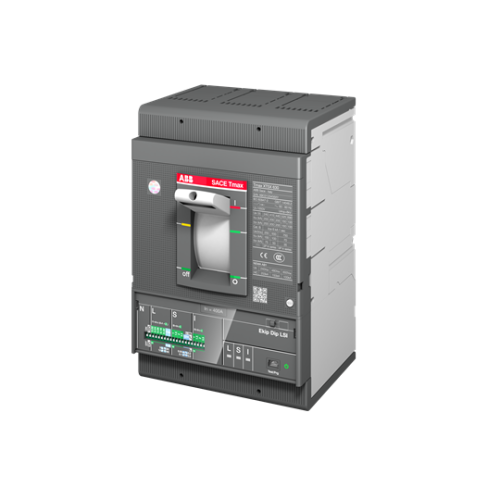

XT5N 400 Ekip Dip LS/I In=320 3p F F

Manufacturer's No: 1SDA100353R1     Manufacturer: ABB
XT5N 400 Ekip Dip LS/I In=320 3p F F

Availability On Request

£1,176.26
  • Circuit Breaker Type: TMAX XT5N 400
  • Configuration: Fixed three-pole
  • Rated Current: 320A
  • Operating Voltage: 3-phase AC
  • Solid-State Release: Ekip Dip LS/I R
  • Front Terminals for easy access


Product

Manufacturer Material ID -
1SDA100353R1
Net Weight -
5.31kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
UNSPSC -
32151705

Technical Specification

Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
36 kiloampere
Adjustment range short-term delayed short-circuit release -
320 Ampere
Adjustment range undelayed short-circuit release -
320 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Overload release current setting -
128 Ampere
Position of connection for main current circuit -
Front
Power loss -
11.6 Watt
Rated permanent current Iu -
320 Ampere
Rated voltage -
690 Volt
Type of control element -
Toggle
Type of electrical connection of main circuit -
Bolt connection
ABB

Availability On Request

£1,176.26
