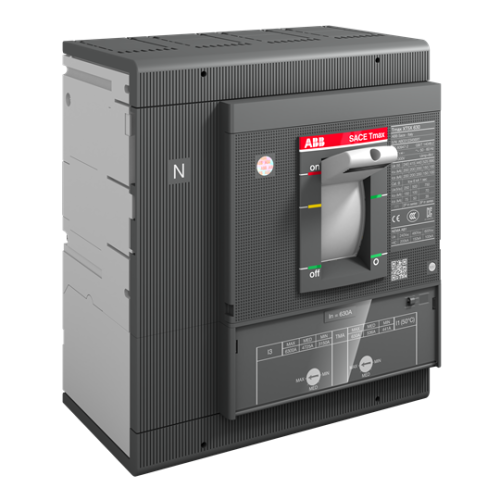

1SDA100388R1

XT5N 630 TMA 630-6300 4p F F InN=50%In

Manufacturer's No: 1SDA100388R1     Manufacturer: ABB
XT5N 630 TMA 630-6300 4p F F InN=50%In

Availability Available to order

£2,624.82
  • Model: XT5N 630 TMA 630-6300 4p F F
  • Rated Current: 3150A to 6300A
  • Neutral Current: 50% of Phases
  • Configuration: 4 poles, Fixed with Front Terminals
  • Features Thermomagnetic Release
  • Circuit Breaker Type: TMAX XT5N 630


Product

Manufacturer Material ID -
1SDA100388R1
Net Weight -
6.09kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
UNSPSC -
32151705

Technical Specification

Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
36 kiloampere
Adjustment range undelayed short-circuit release -
3150 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Overload release current setting -
252 Ampere
Position of connection for main current circuit -
Front
Power loss -
47.8 Watt
Rated permanent current Iu -
630 Ampere
Rated voltage -
690 Volt
Type of control element -
Toggle
Type of electrical connection of main circuit -
Bolt connection
ABB

Availability Available to order

£2,624.82
