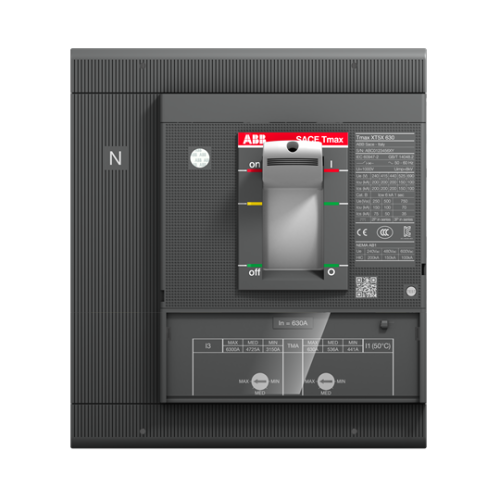

1SDA100407R1

XT5N 400 TMG 400-2000 4p F F In=100%In

Manufacturer's No: XT5N400TMG400     Manufacturer: ABB
XT5N 400 TMG 400-2000 4p F F In=100%In

Availability On Request

£1,312.70
  • Model: XT5N 400 TMG 400-2000 4p F F
  • Circuit Breaker Type: TMAX XT5S 400
  • Features: Fixed with front terminals
  • Release Type: Solid-state thermomagnetic
  • Current Rating: In=100%In
  • Neutral Rating: Fully rated
  • Current Range: I3=1000...2000 A


Product

Manufacturer Material ID -
XT5N400TMG400
Net Weight -
6.09kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
UNSPSC -
39121601

Technical Specification

Adjustment range undelayed short-circuit release -
560 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Overload release current setting -
160 Ampere
Position of connection for main current circuit -
Front
Power loss -
24.1 Watt
Rated permanent current Iu -
400 Ampere
Rated voltage -
690 Volt
Type of control element -
Toggle
Type of electrical connection of main circuit -
Bolt connection
ABB

Availability On Request

£1,312.70
