1SDA100471R1

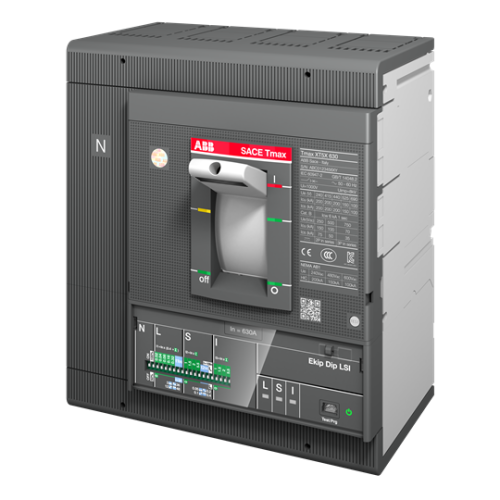

XT5S 630 Ekip Dip LSI In=630 4p F F

Manufacturer's No: 1SDA100471R1     Manufacturer: ABB
XT5S 630 Ekip Dip LSI In=630 4p F F

Availability Back Order

£3,027.19
  • Model: XT5S 630
  • Current Rating: 630A
  • Number of Poles: 4
  • Trip Unit: Ekip Dip LSI
  • Release Type: Solid-State
  • Terminal Position: Front
  • Suitable for: AC circuits


Product

Manufacturer Material ID -
1SDA100471R1
Net Weight -
6.89kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
UNSPSC -
32151705

Technical Specification

Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
50 kiloampere
Adjustment range short-term delayed short-circuit release -
630 Ampere
Adjustment range undelayed short-circuit release -
630 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Overload release current setting -
252 Ampere
Position of connection for main current circuit -
Front
Power loss -
45 Watt
Rated permanent current Iu -
630 Ampere
Rated voltage -
690 Volt
Type of control element -
Toggle
Type of electrical connection of main circuit -
Bolt connection
ABB

Availability Back Order

£3,027.19
