1SDA100557R1

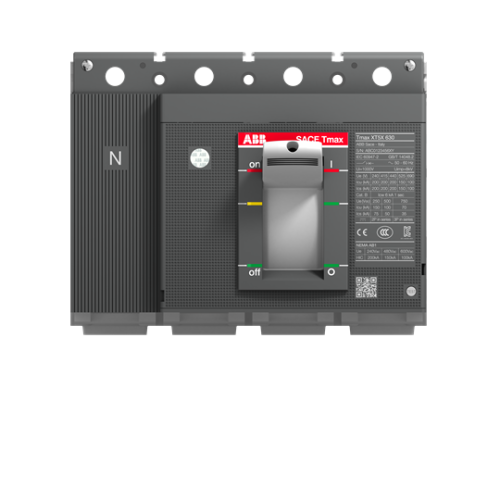

XT5S 630 BREAKING PART 4p F F

Manufacturer's No: 1SDA100557R1     Manufacturer: ABB
XT5S 630 BREAKING PART 4p F F

Availability On Request

£1,656.70
  • Model: XT5S 630
  • Configuration: Four-pole
  • Mounting: Fixed with front terminals
  • Rated current: 630A


Product

Manufacturer Material ID -
1SDA100557R1
Net Weight -
4.50kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
IT
UNSPSC -
32151705

Technical Specification

Rated permanent current Iu -
630 Ampere
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
50 kiloampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Position of connection for main current circuit -
Front
Rated voltage -
690 Volt
Type of control element -
Toggle
Type of electrical connection of main circuit -
Bolt connection
ABB

Availability On Request

£1,656.70
