1SDA100731R1

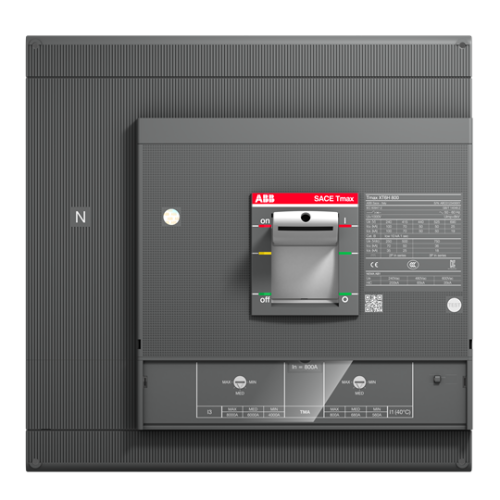

XT6N 800 TMA 800-8000 4p F F InN=100%In

Manufacturer's No: 1SDA100731R1     Manufacturer: ABB
XT6N 800 TMA 800-8000 4p F F InN=100%In

Availability On Request

£2,777.15
  • Model: XT6N 800 TMA 800-8000
  • Configuration: 4-pole, fixed
  • Front terminals with thermomagnetic release
  • InN=100%In
  • Circuit Breaker Type: TMAX
  • Suitable for AC-DC applications
  • Current Range: 4000A to 8000A
  • Fully rated neutral


Product

Manufacturer Material ID -
1SDA100731R1
Net Weight -
14.00kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
UNSPSC -
32151705

Technical Specification

Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
36 kiloampere
Adjustment range undelayed short-circuit release -
4000 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Overload release current setting -
320 Ampere
Position of connection for main current circuit -
Front
Power loss -
54.2 Watt
Rated permanent current Iu -
800 Ampere
Rated voltage -
690 Volt
Type of control element -
Toggle
Type of electrical connection of main circuit -
Bolt connection
ABB

Availability On Request

£2,777.15
