1SDA101117R1

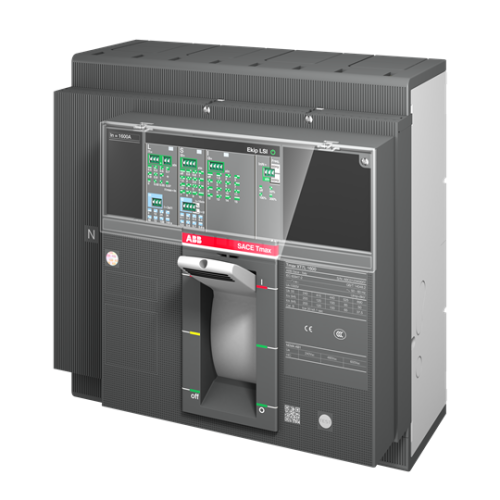

XT7S 1600 Ekip Dip LS/I In=1600A 4p F F

Manufacturer's No: 1SDA101117R1     Manufacturer: ABB
XT7S 1600 Ekip Dip LS/I In=1600A 4p F F

Availability On Request

£5,827.21
  • Model: XT7S 1600
  • Current Rating: 1600A
  • Number of Poles: 4
  • Operating Mechanism: Lever
  • Trip Unit: Solid-State
  • Front Terminals
  • Suitable for AC applications


Product

Manufacturer Material ID -
1SDA101117R1
Net Weight -
14.00kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
UNSPSC -
32151705

Technical Specification

Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
50 kiloampere
Adjustment range short-term delayed short-circuit release -
1600 Ampere
Adjustment range undelayed short-circuit release -
1600 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Overload release current setting -
640 Ampere
Position of connection for main current circuit -
Front
Power loss -
94 Watt
Rated permanent current Iu -
1600 Ampere
Rated voltage -
690 Volt
Type of control element -
Toggle
Type of electrical connection of main circuit -
Bolt connection
ABB

Availability On Request

£5,827.21
