1SDA107600R1

XT6D 630 3p F F

Manufacturer's No: 1SDA107600R1     Manufacturer: ABB

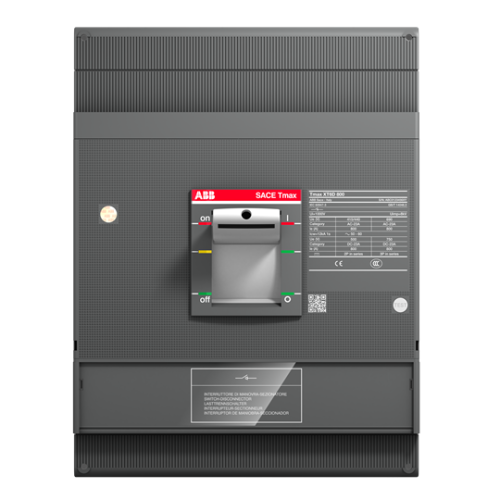

XT6D 630 3p F F

Availability On Request

£1,370.93
  • Model: XT6D 630 3p F F
  • Type: Switch-Disconnector
  • TMAX XT6D 800
  • Configuration: Fixed three-pole
  • Front terminals


Product

Manufacturer Material ID -
1SDA107600R1
Net Weight -
9.00kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
UNSPSC -
32151705

Technical Specification

Type of control element -
Toggle
Colour control element -
White
Degree of protection (IP), front side -
IP20
Degree of protection (NEMA) -
4
Depth -
103.5 Millimetre
Device construction -
Built-in device fixed built-in technique
Height -
268 Millimetre
Interlockable -
Max. rated operation voltage Ue AC -
690 Volt
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Rated operating voltage -
0 Volt
Rated short-time withstand current lcw -
10 kiloampere
Suitable for distribution board installation -
Type of electrical connection of main circuit -
Bolt connection
Version as main switch -
Voltage release optional -
Width -
210 Millimetre
ABB

Availability On Request

£1,370.93
