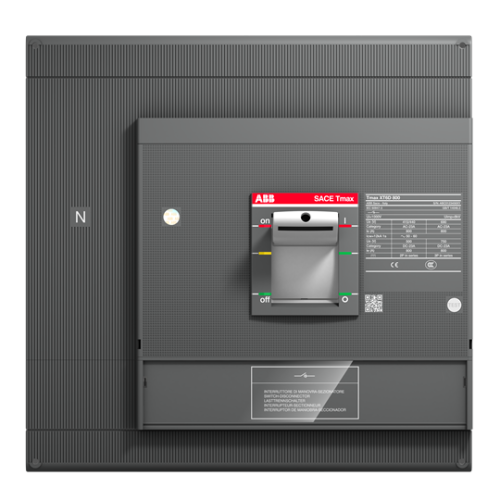

1SDA107601R1

XT6D 630 4p F F

Manufacturer's No: 1SDA107601R1     Manufacturer: ABB
XT6D 630 4p F F

Availability On Request

£1,623.94
  • Model: XT6D 630 4p F F
  • Type: Switch-Disconnector
  • Series: TMAX XT6D
  • Maximum Current: 800A
  • Configuration: Four-Pole
  • Terminal Position: Front


Product

Manufacturer Material ID -
1SDA107601R1
Net Weight -
11.42kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
UNSPSC -
32151705

Technical Specification

Type of control element -
Toggle
Colour control element -
White
Degree of protection (IP), front side -
IP20
Degree of protection (NEMA) -
4
Depth -
103.5 Millimetre
Device construction -
Built-in device fixed built-in technique
Height -
268 Millimetre
Interlockable -
Max. rated operation voltage Ue AC -
690 Volt
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Rated operating voltage -
0 Volt
Rated short-time withstand current lcw -
10 kiloampere
Suitable for distribution board installation -
Type of electrical connection of main circuit -
Bolt connection
Version as main switch -
Voltage release optional -
Width -
280 Millimetre
ABB

Availability On Request

£1,623.94
