1SFL547082R1112

AFS265-30-12-11

Manufacturer's No: AFS265-30-12-11     Manufacturer: ABB
AFS265-30-12-11

Availability On Request

£1,236.93

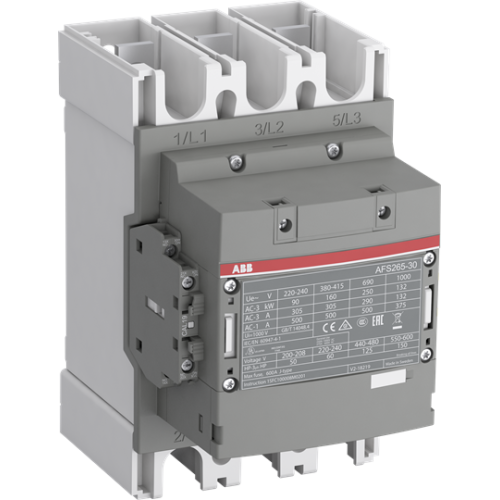

  • AFS265-30-12-11: 3-pole contactor for 1000 V IEC or 600 V UL applications
  • Pre-mounted 1 left (1 N.O + 1 N.C.) and fixed 1 right (1 N.C.) auxiliary contact blocks
  • Suitable for motors up to 132 kW / 400 V AC or 200 hp / 480 V UL
  • Switching power circuits up to 400 A (AC-1) or 350 A UL general use
  • Compliant with main standards EN ISO 13849 and EN 62061 for machine safety
  • Yellow low energy auxiliary contact block for status feedback in safety applications
  • Wide control voltage range: 24-60 V 50/60 Hz and 20-60 V DC
  • Built-in surge protection for compact solution
  • Block type design with easy extension options for add-on auxiliary contact blocks and accessories


Product

Manufacturer Material ID -
AFS265-30-12-11
Net Weight -
4.70kg

Additional Product Information

Commodity Code -
85364900
UNSPSC -
39121529

Technical Specification

Depth -
180 Millimetre
Height -
225 Millimetre
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
1000 Volt
Operating voltage at AC 60 Hz -
1000 Volt
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
20 Volt
Rated operation current Ie at AC-1, 400 V -
400 Ampere
Rated operation current Ie at AC-3, 400 V -
265 Ampere
Rated operation power at AC-3, 400 V -
132 Kilowatt
Rated operation power NEMA -
74.57 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC
Width -
140 Millimetre
ABB

Availability On Request

£1,236.93
