2TLA020001R1300

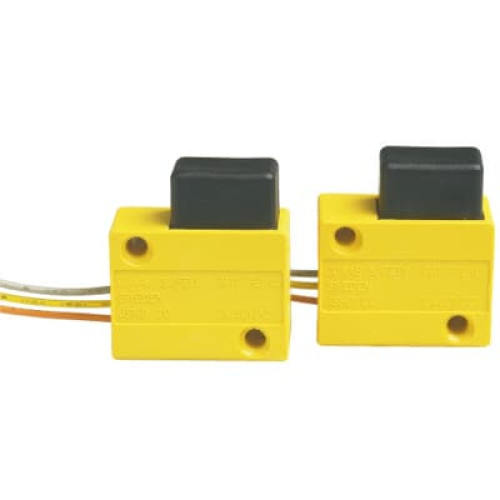

JSHD2C type K Three-position single pushbutton

Manufacturer's No: 20-001-13     Manufacturer: ABB
JSHD2C type K Three-position single pushbutton

Availability On Request

£53.82
  • Type: JSHD2C
  • Configuration: Three-position single pushbutton
  • Contacts: Silver plated
  • Leads: 2 leads, each 290 mm
  • Actuation force from middle to bottom: 20 N
  • Typically used in pairs for three-position devices


Product

Manufacturer Material ID -
20-001-13
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85369095
Country of Origin -
SE
Minimum Order Quantity -
1
UNSPSC -
39122331

Technical Specification

Rated permanent current Iu -
- Ampere
Number of poles -
-
Type of switch -
UN
Max. rated operation voltage Ue AC -
- Volt
Device construction -
UN
Number of switch positions -
3
Width in number of modular spacings -
26.55
Degree of protection (IP), front side -
IP54
Type of control element -
Other
Front shield size -
Other
Suitable for floor mounting -
Suitable for front mounting 4-hole -
Suitable for distribution board installation -
Suitable for intermediate mounting -
Complete device in housing -
Degree of protection (NEMA), front side -
Other
Degree of protection (IP rating) -
IP54
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Number of extra push buttons -
0
Rated operation current Ie at DC-12, 24 V -
0.02 Ampere
Type of electric connection -
Other
Type of switching contact -
Quick-break switch
ABB

Availability On Request

£53.82
