2TLA020006R2100

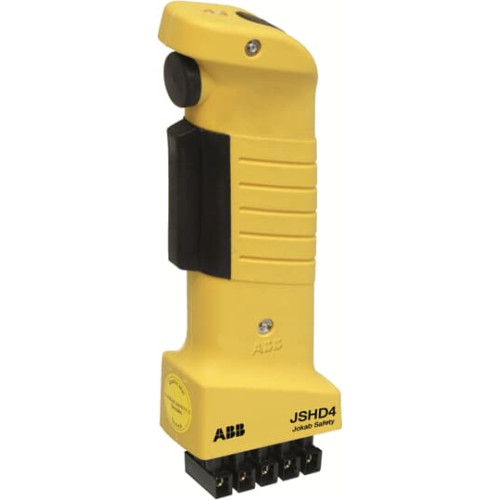

JSHD4-1 Three-position handheld device - Top part

Manufacturer's No: 20-006-21     Manufacturer: ABB
JSHD4-1 Three-position handheld device - Top part

Availability On Request

£312.90
  • JSHD4-1 Three-position handheld device
  • Top part of a three-position device JSHD4
  • No LEDs or extra buttons
  • Compatible with bottom parts: AB, AD, AH, AJ, AK, AL
  • Anti-tamper option available for all bottom parts except AK
  • Allows limited movement of the machine for operator safety during troubleshooting, test running, and programming


Product

Manufacturer Material ID -
20-006-21
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
8536909599
Country of Origin -
SE
Minimum Order Quantity -
1
UNSPSC -
39122331

Technical Specification

Rated operation current Ie at AC12, 125 V -
- Ampere
Rated operation current Ie at AC12, 220 V -
- Ampere
Rated operation current Ie at AC12, 24 V -
- Ampere
Type of electric connection -
Other
Degree of protection (IP) -
IP65
Performance level acc. EN ISO 13849-1 -
Level e
Cross-wire monitoring possible -
Degree of protection (IP rating) -
IP65
Degree of protection (NEMA) -
1
Number of contacts as change-over contact -
1
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
1
Number of extra push buttons -
0
Performance level acc. to EN ISO 13849-1 -
Level e
Rated operation current Ie at DC-12, 24 V -
0.02 Ampere
Suitable for safety functions -
Type of switching contact -
Quick-break switch
ABB

Availability On Request

£312.90
