2TLA020052R1000

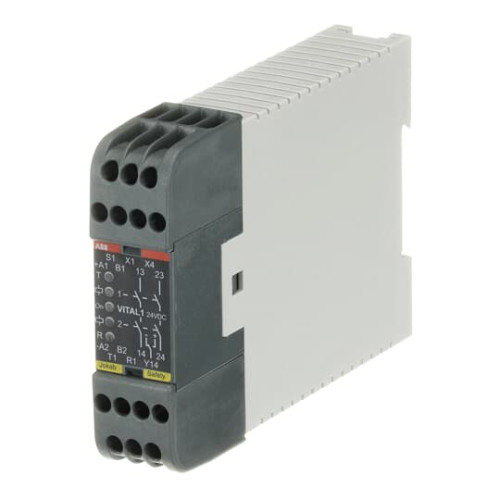

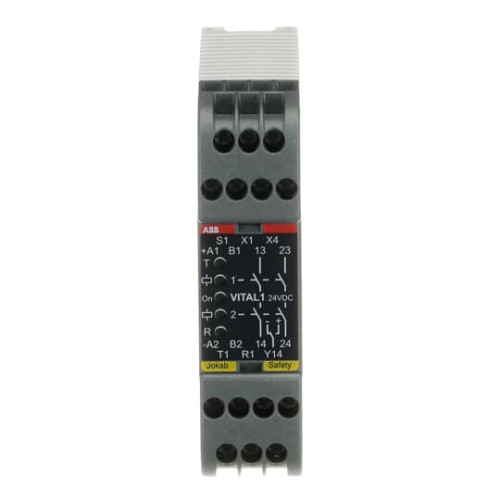

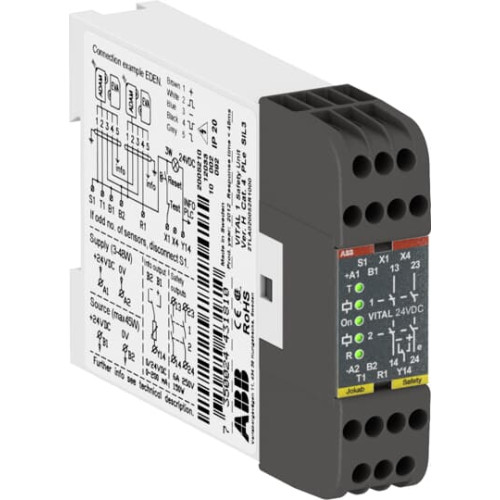

Vital 1 Safety controller

Manufacturer's No: 20-052-10     Manufacturer: ABB
Vital 1 Safety controller

Availability On Request

£323.02
  • Vital 1 Safety controller with relay outputs 2NO
  • +24 VDC supply voltage
  • Detachable screw terminals
  • Configurable safety controller without the need for programming
  • Uses DYNlink system for monitoring safety devices like emergency stops
  • Allows connection of up to 30 safety devices in series
  • Achieves PL e / SIL 3 safety levels
  • Unique DYNlink circuit enables Cat.4/PL e with a single channel
  • Simplifies installation and engineering time with M12 connectors
  • Compatible only with DYNlink safety devices like Eden DYN and Tina adapter


Product

Manufacturer Material ID -
20-052-10
Net Weight -
0.27kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

With approval for T‹V -
Rated control supply voltage Us at AC 50HZ -
0 Volt
Rated control supply voltage Us at AC 60HZ -
0 Volt
Rated control supply voltage Us at DC -
24 Volt
Category according to EN 954-1 -
4
Performance level acc. EN ISO 13849-1 -
Level e
Stop category acc. IEC 60204 -
0
Rated control supply voltage at DC -
24 Volt
Voltage type for actuating -
DC
Control voltage 1 -
24 Volt
Control voltage 2 -
24 Volt
Depth -
120 Millimetre
Evaluation inputs -
1-channel
Height -
84 Millimetre
Model -
Other
Number of outputs, safety related, delayed, semiconductors -
0
Number of outputs, safety related, delayed, with contact -
0
Number of outputs, safety related, undelayed, semiconductors -
0
Number of outputs, safety related, undelayed, with contact -
2
Number of outputs, signalling function, delayed, semiconductors -
0
Number of outputs, signalling function, delayed, with contact -
0
Number of outputs, signalling function, undelayed, semiconductors -
0
Number of outputs, signalling function, undelayed, with contact -
0
Operating voltage at DC -
24 Volt
Performance level acc. to EN ISO 13849-1 -
Level e
Rail mounting possible -
Release-delay -
48 Second
SIL according to IEC 61508 -
3
Stop category acc. to IEC 60204 -
0
Suitable for monitoring of emergency-stop circuits -
Suitable for monitoring of magnetic switches -
Suitable for monitoring of optoelectronic protection equipment -
Suitable for monitoring of position switches -
Suitable for monitoring of proximity switches -
Suitable for monitoring of valves -
Type of control voltage 1 -
DC
Type of control voltage 2 -
DC
Type of electric connection -
Screw connection
Type of safety acc. IEC 61496-1 -
4
Voltage type (operating voltage) -
DC
Voltage type of supply voltage -
DC
Width -
22.5 Millimetre
With approval for TÜV -
With detachable clamps -
With feedback circuit -
With start input -
