2TLA020054R0300

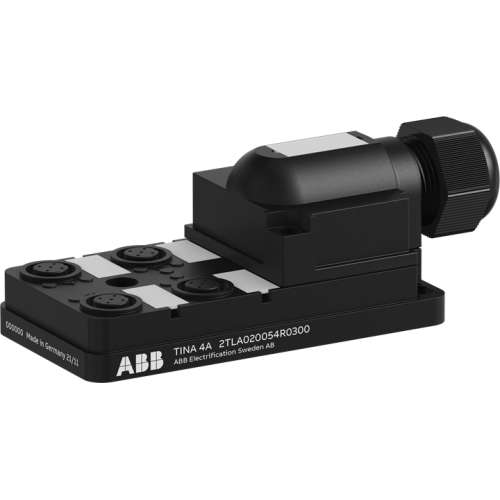

Tina 4A DYNlink connection accessory

Manufacturer's No: 20-054-03     Manufacturer: ABB
Tina 4A DYNlink connection accessory

Availability On Request

£181.16
  • Tina 4A DYNlink connection block for series connection of up to four DYNlink devices
  • Four M12-5 female connectors for sensors
  • Information signal of each device can be wired separately
  • Cable diameter for connection to Tina 4A: 7 - 12 mm
  • Unused M12-connectors on Tina 4A require Tina 1A blind plugs
  • Adapts DYNlink safety circuit in Vital, Pluto, and B&R X20 to safety components with mechanical contacts
  • Compatible with E-stops, switches, light beams/curtains with dual outputs
  • Available in different versions based on the type of safety component connected to Vital, Pluto, or B&R X20 circuit


Product

Manufacturer Material ID -
20-054-03
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
85369095
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39122331

Technical Specification

Type of current -
UN
Rated current -
- Ampere
Number of inputs -
-
Output power -
- Voltampere
Rated operating voltage -
- Volt
Max. switching power -
- Voltampere
Max. number of switching contacts -
-
Max. number of venetian-blind outputs -
-
Switching current (resistive) -
- Ampere
Number of switch inputs -
-
Number of input channels -
-
Number of output channels -
-
Input voltage -
- Volt
Degree of protection (IP) -
UN
Mounting method -
DRA (DIN-rail adapter)
Current type -
DC
Bus connection included -
Width in number of modular spacings -
119
Max. switching current -
5 Ampere
External signal voltage necessary -
Other bus systems -
Other
Suitable for C-load -
LED controlling -
Different phases connectable -
Local operation/hand operation -
With switch function -
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height -
45 Millimetre
Housing colour -
Black
Housing material -
Plastic
Length -
50 Millimetre
Material contact body -
Copper
Material insulation body -
PBT
Material of contact surface -
Gold
Max. current carrying capacity per I/O signal -
2 Ampere
Max. current carrying capacity per socket -
2 Ampere
Max. total current -
2 Ampere
Number of channels per connector slot -
1
Number of poles sensor/actuator slots -
5
Number of sensor-/actuator-slots -
4
Operating temperature -
-10 Degrees celsius
Operating voltage -
24 Volt
Pollution degree -
2
Rated voltage -
24 Volt
Thread sleeves sensor/actuator slots -
M12
Type of branches for sensor-/actuator cables -
M12
Type of connector for trunk line -
M12
