2060-1473/998-404

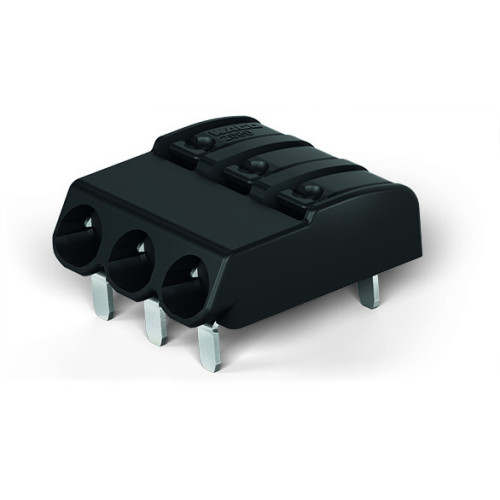

THR PCB terminal block; Push-button; 0.75 mm; Pin spacing 4 mm; 3-pole; Push-in CAGE CLAMP; in tape-and-reel packaging

Manufacturer's No: 2060-1473/998-404     Manufacturer: WAGO
THR PCB terminal block; Push-button; 0.75 mm; Pin spacing 4 mm; 3-pole; Push-in CAGE CLAMP; in tape-and-reel packaging

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£0.90
  • THR PCB terminal block
  • Push-button design
  • Wire size: 0.75 mm²
  • Pin spacing: 4 mm
  • 3-pole configuration
  • Features Push-in CAGE CLAMP® technology
  • Comes in tape-and-reel packaging
  • Color: black

Accessories

Operating Tool, For 2060 Series Insulated

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2060-189
Price £0.74
Back Order

Ferrule, Sleeve For 0.25 mm / Awg 24 Uninsulated

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-131
Price £0.02
Back Order

Ferrule, Sleeve For 0.25 mm / Awg 24 Insulated Yellow

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-301
Price £0.05
Back Order

Ferrule, Sleeve For 0.34 mm / Awg 24 Insulated Green

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-302
Price £0.05
Back Order

Ferrule, Sleeve For 0.34 mm / Awg 24 Uninsulated

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-132
Price £0.02
Back Order


Product

Manufacturer Material ID -
2060-1473/998-404
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
CH
UNSPSC -
39121410

Technical Specification

Drill hole distance centrically -
- Millimetre
Length -
12.7 Millimetre
Operation temperature -
-60 Degrees celsius
Width/grid dimension -
4 Millimetre
Height at lowest possible mounting height -
4.5 Millimetre
Connection position -
Sideways
Colour -
Black
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.2 Square millimetre
Connectable conductor cross section multi-wired -
0.2 Square millimetre
Connectable conductor cross section solid-core -
0.2 Square millimetre
Depth -
12.7 Millimetre
Height -
6.9 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
Other
Number of clamp positions per pole -
1
Number of poles -
3
Operating temperature -
-60 Degrees celsius
Rated current In -
9 Ampere
Rated voltage -
160 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
4 Millimetre

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£0.90
