2060-471/998-404

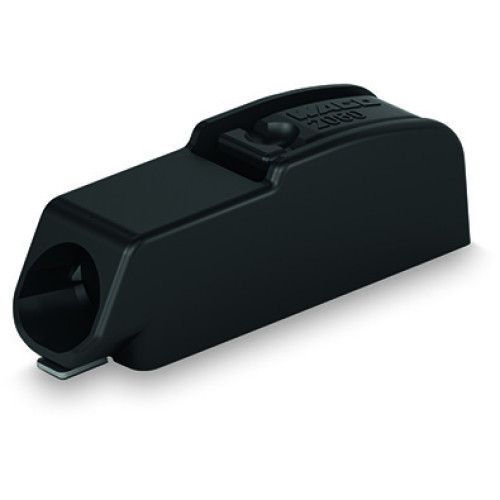

SMD PCB terminal block, push-button, 0.75 mm², black

Manufacturer's No: 2060-471/998-404     Manufacturer: WAGO
SMD PCB terminal block, push-button, 0.75 mm², black

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£0.33
  • SMD PCB terminal block
  • Push-button with Push-in CAGE CLAMP®
  • 1-pole configuration
  • Pin spacing of 4 mm
  • Wire size capacity of 0.75 mm²
  • Black color
  • Tape-and-reel packaging

Accessories

Board-to-Board Link, Pin spacing 4 mm, 1-pole, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2060-951/028-000
Price £0.24
On Request

Ferrule, Sleeve for 0.25 mm² / AWG 24, uninsulated, silver-colored

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-131
Price £0.02
On Request

Ferrule, Sleeve for 0.25 mm² / AWG 24, insulated, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-301
Price £0.05
On Request

Ferrule, Sleeve for 0.34 mm² / 22 AWG, insulated, light turquoise

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-302
Price £0.05
On Request

Ferrule, Sleeve for 0.34 mm² / AWG 24, uninsulated

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-132
Price £0.02
On Request


Product

Manufacturer Material ID -
2060-471/998-404
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
CH
Minimum Order Quantity -
1500
UNSPSC -
39121410

Technical Specification

Drill hole distance centrically -
- Millimetre
Length -
13.1 Millimetre
Operation temperature -
-60 Degrees celsius
Width/grid dimension -
4 Millimetre
Height at lowest possible mounting height -
4.5 Millimetre
Connection position -
Sideways
Colour -
Black
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.2 Square millimetre
Connectable conductor cross section multi-wired -
0.2 Square millimetre
Connectable conductor cross section solid-core -
0.2 Square millimetre
Depth -
13.1 Millimetre
Height -
4.5 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
Other
Number of clamp positions per pole -
1
Number of poles -
1
Operating temperature -
-60 Degrees celsius
Rated current In -
9 Ampere
Rated voltage -
160 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
3.9 Millimetre

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£0.33
