2061-601/998-404

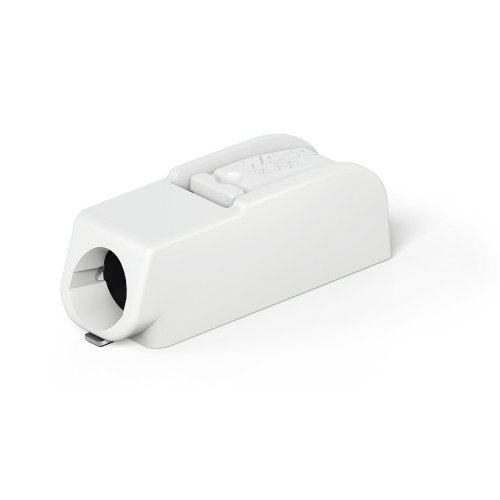

Smd PCB Terminal Block, Push-Button 1.5 mm Pin Spacing 6 mm 1-Pole White

Manufacturer's No: 2061-601/998-404     Manufacturer: WAGO
Smd PCB Terminal Block, Push-Button 1.5 mm Pin Spacing 6 mm 1-Pole White

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.00

£0.54
  • SMD PCB Terminal Block
  • Push-button design
  • 1.5 mm pin spacing
  • 6 mm width
  • 1-pole configuration
  • White color
  • Push-in CAGE CLAMP
  • Tape-and-reel packaging


Product

Manufacturer Material ID -
2061-601/998-404
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
CH
Minimum Order Quantity -
900
UNSPSC -
39121410

Technical Specification

Drill hole distance centrically -
- Millimetre
Length -
15.8 Millimetre
Operation temperature -
-60 Degrees celsius
Width/grid dimension -
6 Millimetre
Height at lowest possible mounting height -
5.6 Millimetre
Connection position -
Sideways
Mounting method -
Other
Colour -
White
Rated voltage -
320 Volt
Number of poles -
1
Operating temperature -
-60 Degrees celsius
Number of clamp positions per pole -
1
Inflammability class of insulation material acc. with UL94 -
V0
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Connectable conductor cross section solid-core -
0.5 Square millimetre
Connectable conductor cross section fine-strand with cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section multi-wired -
0.5 Square millimetre
Material insulation body -
Thermoplastic
Rated current In -
17.5 Ampere
