2065-100/998-403

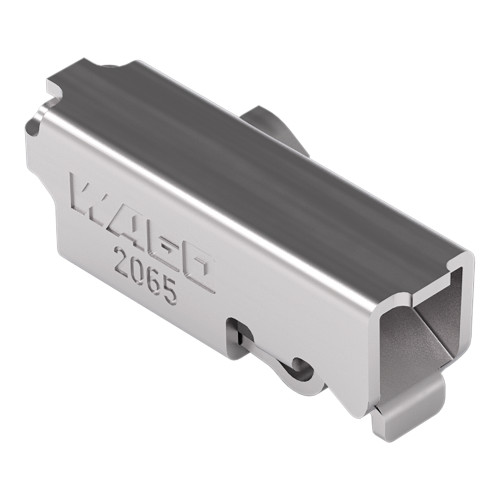

SMD PCB terminal block, push-button, 0.75 mm², silver-colored

Manufacturer's No: 2065-100/998-403     Manufacturer: WAGO
SMD PCB terminal block, push-button, 0.75 mm², silver-colored

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£0.26
  • SMD PCB terminal block
  • Push-button design
  • Pin spacing: 6.5 mm
  • 1-pole configuration
  • Push-in CAGE CLAMP® technology
  • Tape-and-reel packaging
  • Without housing
  • Conductor size: 0.75 mm²
  • Silver-colored

Accessories

Operating tool, made of insulating material, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2065-189
Price £0.74
On Request

Board-to-Board Link, Pin spacing 6.5 mm, Length: 15.6 mm, silver-colored

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2065-131
Price POA
On Request

Board-to-Board Link, Pin spacing 6.5 mm, Length: 17.6 mm, silver-colored

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2065-133
Price POA
On Request


Product

Manufacturer Material ID -
2065-100/998-403
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
82032000
Country of Origin -
CH
UNSPSC -
39121410

Technical Specification

Drill hole distance centrically -
- Millimetre
Connectable conductor cross section fine-strand with cable end sleeve -
- Square millimetre
Connectable conductor cross section multi-wired -
- Square millimetre
Length -
8 Millimetre
Operation temperature -
-60 Degrees celsius
Width/grid dimension -
2.3 Millimetre
Height at lowest possible mounting height -
2.7 Millimetre
Connection position -
Sideways
Colour -
Other
Connectable conductor cross section fine-strand without cable end sleeve -
0.2 Square millimetre
Connectable conductor cross section solid-core -
0.2 Square millimetre
Depth -
7.9 Millimetre
Height -
2.7 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
Other
Number of clamp positions per pole -
1
Number of poles -
1
Operating temperature -
-60 Degrees celsius
Rated current In -
9 Ampere
Rated voltage -
320 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
2.9 Millimetre

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£0.26
