2075-381/997-404

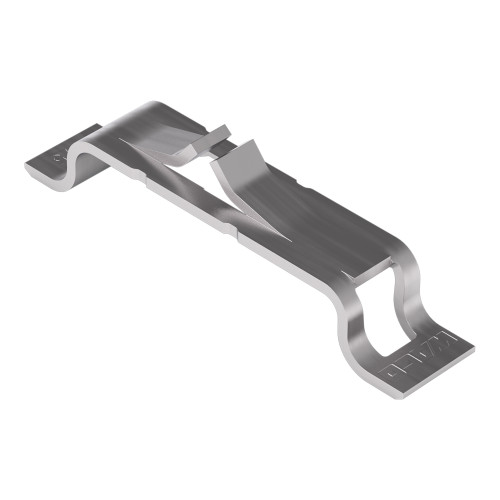

Through-Board SMD PCB Terminal Block, Pin spacing 3 mm, 1-pole, silver-colored

Manufacturer's No: 2075-381/997-404     Manufacturer: WAGO
Through-Board SMD PCB Terminal Block, Pin spacing 3 mm, 1-pole, silver-colored

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£0.28
  • Through-Board SMD PCB Terminal Block
  • Pin spacing: 3 mm
  • 1-pole configuration
  • PUSH WIRE® technology
  • Tape-and-reel packaging
  • Without housing
  • Conductor size: 0.75 mm²
  • Silver-colored


Product

Manufacturer Material ID -
2075-381/997-404
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
82032000
Country of Origin -
CH
UNSPSC -
39121410

Technical Specification

Colour -
UN
Drill hole distance centrically -
- Millimetre
Connectable conductor cross section fine-strand with cable end sleeve -
- Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
- Square millimetre
Connectable conductor cross section multi-wired -
- Square millimetre
Length -
17.5 Millimetre
Operation temperature -
-60 Degrees celsius
Width/grid dimension -
3 Millimetre
Height at lowest possible mounting height -
3.9 Millimetre
Connection position -
Above
Connectable conductor cross section solid-core -
0.5 Square millimetre
Depth -
17.5 Millimetre
Height -
3.9 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
Other
Number of clamp positions per pole -
1
Number of poles -
1
Operating temperature -
-60 Degrees celsius
Rated current In -
9 Ampere
Rated voltage -
200 Volt
Type of electrical connection 1 -
Plug clamp connection
Type of electrical connection 2 -
Plug clamp connection
Width -
3 Millimetre

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£0.28
