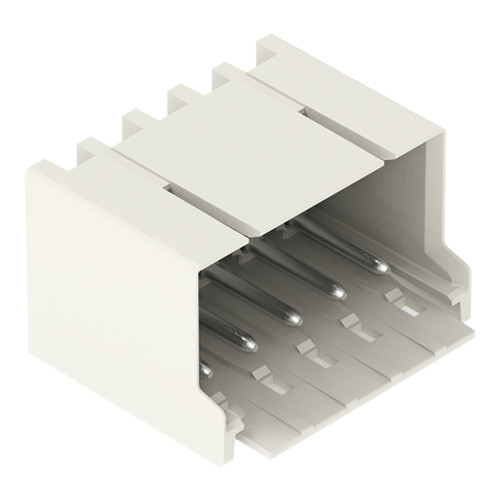

2091-1425/200-000

Male header with angled solder pins 5-pole Pin spacing 3.5 mm / 0.138 in light gray

Manufacturer's No: 2091-1425/200-000     Manufacturer: WAGO
Male header with angled solder pins 5-pole Pin spacing 3.5 mm / 0.138 in light gray

Availability Back Order

POA
  • THR male header
  • 1.0 mm Ø solder pin, angled
  • Pin spacing: 3.5 mm
  • 5-pole
  • Color: light gray

Accessories

Coding Key Carrier, Suitable For 3.5 mm Pin Spacing Orange

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2091-1610
Price £0.10
Back Order


Product

Manufacturer Material ID -
2091-1425/200-000
Net Weight -
0.40kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Colour housing -
Other
Operation temperature -
-60 Degrees celsius
Angle PCB/contact -
0°/180° (horizontal)
Connector model -
Free connector
Contact type -
Pin
Diameter connection pin -
1 Millimetre
Housing colour -
Other
Inflammability class of insulation material acc. with UL94 -
V0
Length pin -
3.6 Millimetre
Material insulation body -
Thermoplastic
Material of contact surface -
Tin
Modular spacing connections -
3.5 Millimetre
Modular spacing contacts -
3.5 Millimetre
Number of plug-in contact rows -
1
Number of poles -
5
Operating temperature -
-60 Degrees celsius
Over voltage category -
III
Pollution degree -
2
Rated current In -
10 Ampere
Rated surge voltage -
2.5 Kilovolt
Rated voltage -
160 Volt
Suitable for PCB thickness -
2 Millimetre
Type of banding -
None
Type of connection -
Flexible PCB-connector
Type of electric connection -
Soldering connection
Type of fastening -
Solder
Type of PCB fastening -
Connecting contact

Availability Back Order

POA
