2092-1636/024-000

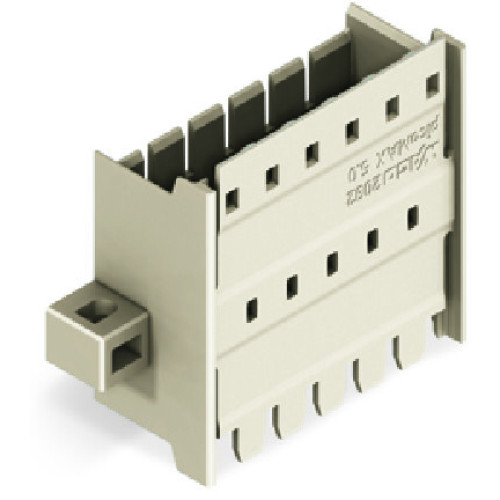

Panel feedthrough male connector, clamping collar, 2.5 mm², light gray

Manufacturer's No: 2092-1636/024-000     Manufacturer: WAGO
Panel feedthrough male connector, clamping collar, 2.5 mm², light gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£1.70
  • Panel feedthrough male connector
  • 6-pole with pin spacing of 5 mm
  • Clamping collar for secure connection
  • Wire size capacity of 2.5 mm²
  • Color: light gray


Product

Manufacturer Material ID -
2092-1636/024-000
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
82032000
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Drill hole distance centrically -
- Millimetre
Connectable conductor cross section solid-core -
- Square millimetre
Connectable conductor cross section fine-strand with cable end sleeve -
- Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
- Square millimetre
Connectable conductor cross section multi-wired -
- Square millimetre
Length -
33.4 Millimetre
Operation temperature -
-60 Degrees celsius
Width/grid dimension -
5 Millimetre
Height at lowest possible mounting height -
14.4 Millimetre
Connection position -
Above
Colour -
Grey
Depth -
33.4 Millimetre
Height -
14.4 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
Other
Number of clamp positions per pole -
1
Number of poles -
6
Operating temperature -
-60 Degrees celsius
Rated current In -
16 Ampere
Rated voltage -
320 Volt
Type of electrical connection 1 -
Other
Type of electrical connection 2 -
Other
Width -
5 Millimetre
