2CMA100543R1000

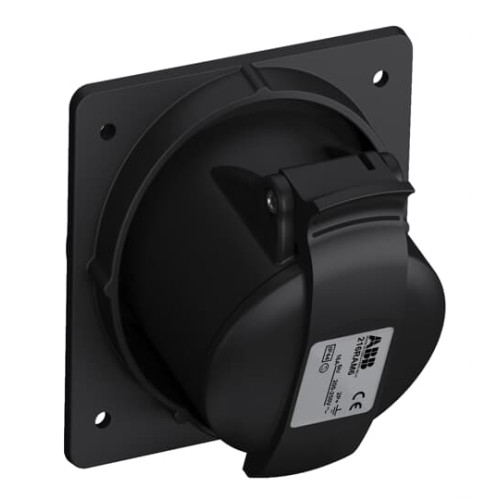

Black Socket-outlet, panel mounting, earthing sleeve position 6h, rated current 16A, IP44 splashproof, minimized flange, angled, 2

Manufacturer's No: 216RAM6B     Manufacturer: ABB
Black Socket-outlet, panel mounting, earthing sleeve position 6h, rated current 16A, IP44 splashproof, minimized flange, angled, 2-poles+earth, frequency 50-60 Hz, color code Blue Clock Position Of Gr

Availability Back Order

POA
  • Black panel-mount socket outlet
  • Rated current: 16A
  • IP44 splashproof
  • Minimized flange design
  • Angled with earthing sleeve position 6h
  • 2-poles + earth configuration
  • Frequency: 50-60 Hz
  • Color code: Blue for grounding contact position


Product

Manufacturer Material ID -
216RAM6B
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
CZ
Minimum Order Quantity -
1
UNSPSC -
39121402

Technical Specification

Cable entry -
UN
RAL-number -
7001
Amperage acc. UL/CSA (for UL-version) -
16 Ampere
Degree of protection (IP) -
IP67
RAL number -
9005
Number of poles -
3
Rated frequency -
50 Hertz
Material -
Plastic
IEC-amperage -
16 Ampere
Connection system -
Screwed terminal
Angle of plug -
Angled
Rated voltage -
200 Volt
Degree of protection (IP rating) -
IP44
Clock hour position -
6 Hour
Identification colour -
Blue
Voltage acc. EN 60309-2 -
230 V (50+60 Hz) blue
Drill hole distance vertical -
55 Millimetre
Drill hole distance horizontal -
55 Millimetre
Flange size vertical -
78 Millimetre
Flange size horizontal -
70 Millimetre
