RLG28-55/40a/115b/136

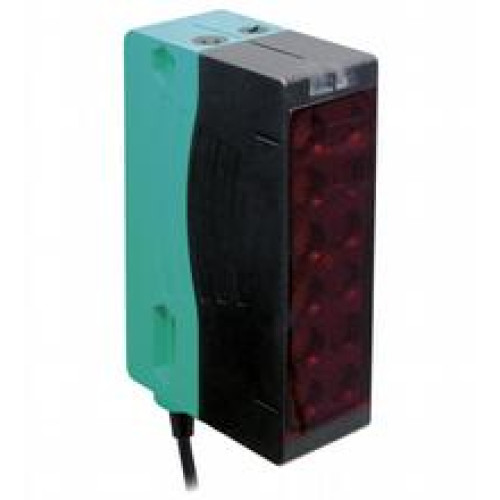

Retroreflective area sensor - Effective detection range: 0 ... 4 m, Number of beams: 6, Light source: LED, Light type: modulated v

Manufacturer's No: 217956     Manufacturer: Pepperl+Fuchs
Retroreflective area sensor - Effective detection range: 0 ... 4 m, Number of beams: 6, Light source: LED, Light type: modulated visible red light , 625 nm, Signal output: 2 push-pull (4 in 1) outp..

Availability Back Order

£302.10
  • Detection Range: 0 to 4 meters
  • Number of Beams: 6
  • Light Source: LED
  • Light Type: Modulated visible red light (625 nm)
  • Signal Output: 2 push-pull outputs (4 in 1), complementary, short-circuit proof, reverse polarity protected
  • Switching Type: Light/dark on, switchable
  • Connection: 300 mm fixed cable with M12 x 1, 4-pin connector
  • Operating Voltage: 12 to 30 V DC
  • Ambient Temperature: -30 to 60 °C (-22 to 140 °F) (-10 to 40 °C (14 to 104 °F) for inactive signal tracking)

Accessories



Product

Manufacturer Material ID -
217956
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
8536 5019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability Back Order

£302.10
