218-502/000-604/997-403

THR PCB terminal block, Locking slides, 0.5 mm², black

Manufacturer's No: 218-502/000-604/997-403     Manufacturer: WAGO
THR PCB terminal block, Locking slides, 0.5 mm², black

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
  • THR PCB terminal block
  • Locking slides for secure connection
  • 2-pole with pin spacing of 2.54 mm
  • CAGE CLAMP® technology for reliable contact
  • Wire size capacity of 0.5 mm²
  • Comes in black color

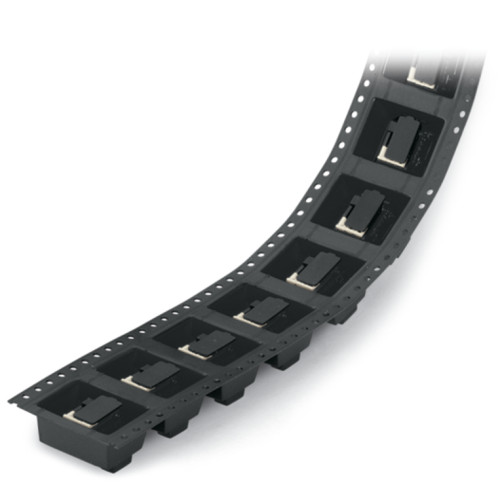

  • Packaged in tape-and-reel format

Accessories

Ferrule, Sleeve for 0.25 mm² / AWG 24, uninsulated

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-151
Price £0.02
On Request

Ferrule, Sleeve for 0.25 mm² / AWG 24, uninsulated, silver-colored

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-131
Price £0.02
On Request

Ferrule, Sleeve for 0.25 mm² / AWG 24, insulated, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-301
Price £0.05
On Request

Ferrule, Sleeve for 0.25 mm² / AWG 24, insulated, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-321
Price £0.05
On Request

Marking strips, as a DIN A4 sheet, MARKED, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 210-331/254-206
Price POA
On Request

Marking strips, as a DIN A4 sheet, MARKED, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 210-331/254-207
Price POA
On Request


Product

Manufacturer Material ID -
218-502/000-604/997-403
Net Weight -
0.54kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
CH
UNSPSC -
39121410

Technical Specification

Diameter connection pin -
- Millimetre
Degree of protection (IP), mounted -
UN
Colour housing -
Black
Operation temperature -
-60 Degrees celsius
Angle PCB/conductor connection -
Other
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Connection type conductor -
Spring clamp connection
Connection type PCB -
THR connection
Height -
8.1 Millimetre
Housing colour -
Black
Inflammability class of insulation material acc. with UL94 -
V2
Length pin -
2.8 Millimetre
Material connection surface -
Tin
Material insulation body -
Thermoplastic
Modular spacing connections -
2.54 Millimetre
Number of electrical connections -
2
Number of levels -
1
Operating temperature -
-60 Degrees celsius
Over voltage category -
III
Pollution degree -
2
Rated current In -
6 Ampere
Rated surge voltage -
2.5 Kilovolt
Rated voltage -
160 Volt
Type of banding -
None
Type of fastening -
Solder
Type of PCB fastening -
Connecting contact

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
