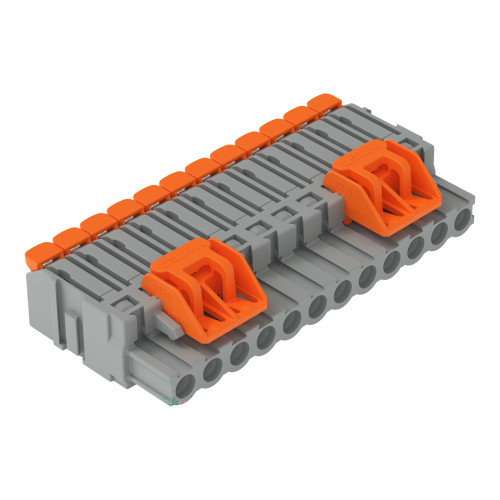

2231-1112/329-000

1-conductor female connector, lever, Push-in CAGE CLAMP®, gray

Manufacturer's No: 2231-1112/329-000     Manufacturer: WAGO
1-conductor female connector, lever, Push-in CAGE CLAMP®, gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
  • 1-conductor female connector with lever
  • Push-in CAGE CLAMP® technology
  • 2.5 mm² wire size
  • Pin spacing of 5 mm
  • 12-pole connector
  • Centered locking levers for secure connection
  • Color: gray

Accessories

Ferrule, Sleeve for 0.75 mm² / 18 AWG, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-262
Price £0.09
On Request

Ferrule, Sleeve for 1 mm² / AWG 18, insulated, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-263
Price £0.09
On Request

Ferrule, Sleeve for 1.5 mm² / AWG 16, insulated, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-264
Price £0.09
On Request

Insulation stop, 0.25 - 0.5 mm², light gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 231-671
Price £0.09
On Request

Insulation stop, 0.75 - 1 mm², dark gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 231-672
Price £0.09
On Request

Marking strips, as a DIN A4 sheet, MARKED, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 210-332/500-204
Price POA
On Request


Product

Manufacturer Material ID -
2231-1112/329-000
Net Weight -
0.55kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
PL
UNSPSC -
32151705

Technical Specification

Angle contact/conductor connection -
180° (horizontal)
Connectable cable type -
Tubular cable
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.2 Square millimetre
Connectable conductor cross section multi-wired -
0.2 Square millimetre
Connectable conductor cross section solid-core -
0.2 Square millimetre
Degree of protection (IP), mounted -
IP20
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Modular spacing connections -
5 Millimetre
Modular spacing contacts -
5 Millimetre
Number of plug-in contact rows -
1
Number of poles -
12
Operating temperature -
-60 Degrees celsius
Pollution degree -
2
Rated current In -
16 Ampere
Rated surge voltage -
4 Kilovolt
Rated voltage -
320 Volt

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
