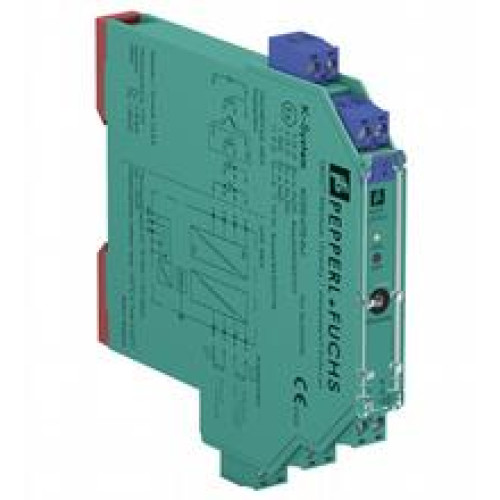

KCD2-UT2-EX1

Universal Temperature Converter, Device provides intrinsically safe circuits for equipment protection level: Ga , Gb , Gc , Da , D

Manufacturer's No: 225696     Manufacturer: Pepperl+Fuchs
Universal Temperature Converter, Device provides intrinsically safe circuits for equipment protection level: Ga , Gb , Gc , Da , Db , Dc , Ma , Mb, Device suitable for mounting in equipment protect..

Availability On Request

£464.75
  • Device provides intrinsically safe circuits for equipment protection levels: Ga, Gb, Gc, Da, Db, Dc, Ma, Mb
  • Suitable for mounting in equipment protection level: Gc
  • Device provides intrinsically safe circuits for division: Div. 1, Div. 2
  • Suitable for mounting in division: Div. 2
  • Safety integrity level: SIL 2
  • Signal type: Analog input
  • Number of channels: 1
  • Field-side signal: -100 ... 100 mV
  • Field-side devices supported: Potentiometer, Resistance Thermometer, Thermocouple
  • Control-side signal: 0/4 ... 20 mA (current source or current sink)

Read more

  • Transmission direction: For the control
  • Functions include line fault detection
  • Power supply: 24 VDC
  • Power supply connection options: Terminals or Power Rail
  • Connection type: Screw terminals
  • Housing width: 12.5 mm
  • Ambient temperature range: -20 ... 70 °C (-4 ... 158 °F)


Product

Manufacturer Material ID -
225696
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85437090
Country of Origin -
SG
UNSPSC -
39121521
Pepperl+Fuchs

Availability On Request

£464.75
