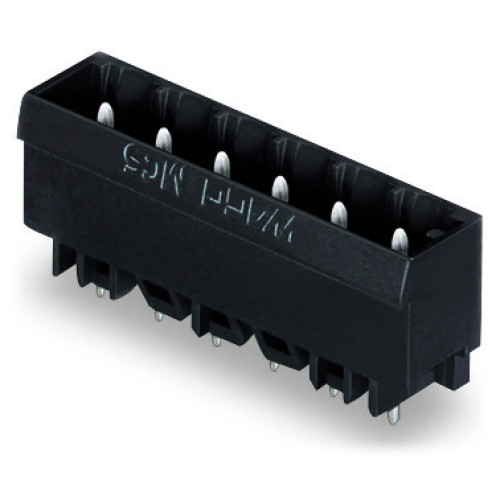

231-166/001-000/105-604

THR male header, 1.2 x 1.2 mm solder pin, straight, black

Manufacturer's No: 231-166/001-000/105-604     Manufacturer: WAGO
THR male header, 1.2 x 1.2 mm solder pin, straight, black

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
  • THR male header
  • 1.2 x 1.2 mm solder pin, straight
  • Pin spacing: 5 mm
  • 6-pole
  • Color: black

Accessories

Coding key, snap-on type, light gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 231-129
Price £0.07
On Request

Spacer, for formation of groups, light gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 231-500
Price £0.03
On Request


Product

Manufacturer Material ID -
231-166/001-000/105-604
Net Weight -
0.32kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Diameter connection pin -
- Millimetre
Colour housing -
Black
Operation temperature -
-60 Degrees celsius
Angle PCB/contact -
90° (upwards vertical)
Connector model -
Free connector
Contact type -
Pin
Housing colour -
Black
Inflammability class of insulation material acc. with UL94 -
V0
Length pin -
2.4 Millimetre
Material insulation body -
Thermoplastic
Material of contact surface -
Tin
Modular spacing connections -
5 Millimetre
Modular spacing contacts -
5 Millimetre
Number of plug-in contact rows -
1
Number of poles -
6
Operating temperature -
-60 Degrees celsius
Over voltage category -
III
Pollution degree -
2
Rated current In -
16 Ampere
Rated surge voltage -
4 Kilovolt
Rated voltage -
320 Volt
Suitable for PCB thickness -
1.5 Millimetre
Type of banding -
None
Type of connection -
Flexible PCB-connector
Type of electric connection -
THR connection
Type of fastening -
Solder
Type of PCB fastening -
Connecting contact

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
