232-867

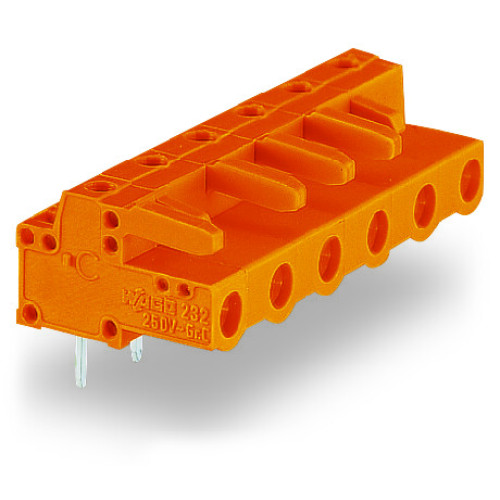

Female connector with angled solder pins 7-pole orange

Manufacturer's No: 232-867     Manufacturer: WAGO
Female connector with angled solder pins 7-pole orange

Availability Back Order

POA
  • THT female header
  • Angled design
  • Pin spacing: 7.62 mm
  • 7-pole configuration
  • Solder pin dimensions: 0.6 x 1.0 mm
  • Color: Orange

Accessories



Product

Manufacturer Material ID -
232-867
Net Weight -
0.63kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Diameter connection pin -
- Millimetre
Colour housing -
Orange
Operation temperature -
-60 Degrees celsius
Angle PCB/contact -
0°/180° (horizontal)
Connector model -
Free connector
Contact type -
Pin
Housing colour -
Orange
Inflammability class of insulation material acc. with UL94 -
V0
Length pin -
5 Millimetre
Material insulation body -
Thermoplastic
Material of contact surface -
Tin
Modular spacing connections -
7.62 Millimetre
Modular spacing contacts -
7.62 Millimetre
Number of plug-in contact rows -
1
Number of poles -
7
Operating temperature -
-60 Degrees celsius
Over voltage category -
III
Pollution degree -
2
Rated current In -
12 Ampere
Rated surge voltage -
6 Kilovolt
Rated voltage -
630 Volt
Suitable for PCB thickness -
1.5 Millimetre
Type of banding -
None
Type of connection -
Flexible PCB-connector
Type of electric connection -
Soldering connection
Type of fastening -
Solder
Type of PCB fastening -
Connecting contact

Availability Back Order

POA
