234-504

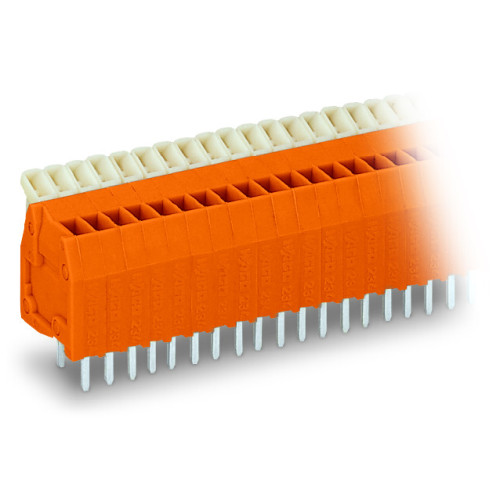

PCB Terminal Block, Push-Button 0.5 mm Pin Spacing 2.54 mm 4-Pole Orange

Manufacturer's No: 234-504     Manufacturer: WAGO
PCB Terminal Block, Push-Button 0.5 mm Pin Spacing 2.54 mm 4-Pole Orange

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£1.72
  • PCB terminal block for easy connection
  • Push-button design for quick installation
  • Pin spacing of 2.54 mm for compatibility
  • 4-pole configuration
  • CAGE CLAMP® technology for secure connections
  • Wire size capacity of 0.5 mm²
  • Color: orange

Accessories

Ferrule, Sleeve For 0.25 mm / Awg 24 Uninsulated

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-151
Price £0.02
Back Order

Ferrule, Sleeve For 0.25 mm / Awg 24 Uninsulated

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-131
Price £0.02
Back Order

Ferrule, Sleeve For 0.25 mm / Awg 24 Insulated Yellow

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-301
Price £0.05
Back Order

Ferrule, Sleeve For 0.25 mm / Awg 24 Insulated Yellow

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-321
Price £0.05
Back Order


Product

Manufacturer Material ID -
234-504
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
CH
Minimum Order Quantity -
100
UNSPSC -
39121410

Technical Specification

Diameter connection pin -
- Millimetre
Degree of protection (IP), mounted -
UN
Colour housing -
Orange
Operation temperature -
-60 Degrees celsius
Angle PCB/conductor connection -
90° (upwards vertical)
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Connection type conductor -
Spring clamp connection
Connection type PCB -
Soldering connection
Height -
14 Millimetre
Housing colour -
Orange
Inflammability class of insulation material acc. with UL94 -
V0
Length pin -
4 Millimetre
Material connection surface -
Tin
Material insulation body -
Thermoplastic
Modular spacing connections -
2.54 Millimetre
Number of electrical connections -
4
Number of levels -
1
Operating temperature -
-60 Degrees celsius
Over voltage category -
III
Pollution degree -
2
Rated current In -
6 Ampere
Rated surge voltage -
2.5 Kilovolt
Rated voltage -
160 Volt
Type of banding -
None
Type of fastening -
Solder
Type of PCB fastening -
Connecting contact
