235-201

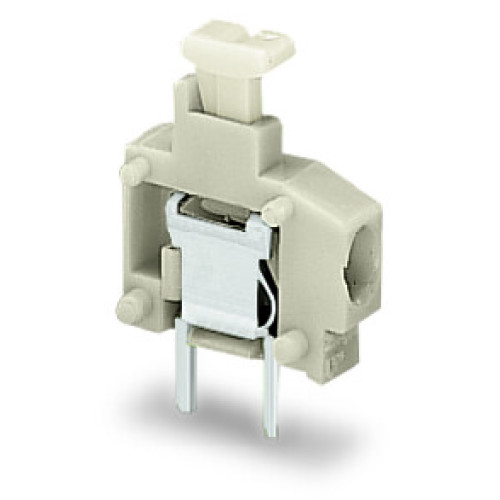

Stackable PCB terminal block Push-button 1.5 mm Pin spacing 3.96 mm 1-pole light gray

Manufacturer's No: 235-201     Manufacturer: WAGO
Stackable PCB terminal block Push-button 1.5 mm Pin spacing 3.96 mm 1-pole light gray

Availability On Request

£0.23
  • Stackable PCB terminal block
  • Push-button
  • Pin spacing: 3.96 mm
  • 1-pole
  • Push-in CAGE CLAMP
  • Pin spacing: 1.5 mm
  • Color: Light gray


Product

Manufacturer Material ID -
235-201
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
CH
Minimum Order Quantity -
100
UNSPSC -
39121410

Technical Specification

Diameter connection pin -
- Millimetre
Connectable conductor cross section multi-wired -
- Square millimetre
Degree of protection (IP), mounted -
UN
Colour housing -
Grey
Operation temperature -
-60 Degrees celsius
Height -
15.5 Millimetre
Housing colour -
Grey
Rated voltage -
320 Volt
Operating temperature -
-60 Degrees celsius
Type of fastening -
Solder
Inflammability class of insulation material acc. with UL94 -
V0
Number of levels -
1
Rated surge voltage -
4 Kilovolt
Over voltage category -
III
Pollution degree -
2
Connection type conductor -
Spring clamp connection
Connection type PCB -
Soldering connection
Length pin -
3.6 Millimetre
Material connection surface -
Tin
Modular spacing connections -
3.96 Millimetre
Type of banding -
None
Connectable conductor cross section solid-core -
0.5 Square millimetre
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.75 Square millimetre
Material insulation body -
Thermoplastic
Angle PCB/conductor connection -
0°/180° (horizontal)
Type of PCB fastening -
Connecting contact
Rated current In -
17.5 Ampere
Number of electrical connections -
1

Availability On Request

£0.23
