237-133

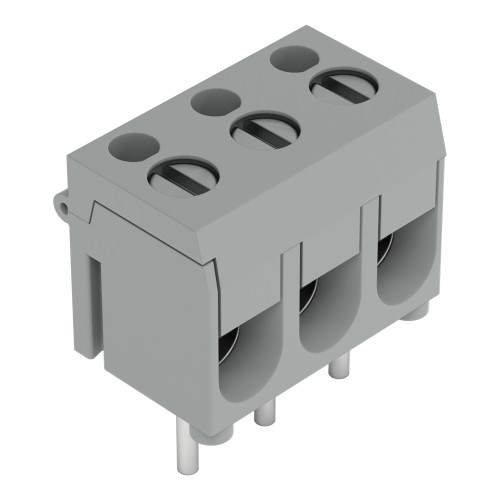

PCB terminal block, 2.5 mm², Pin spacing 5.08 mm, gray

Manufacturer's No: 237-133     Manufacturer: WAGO
PCB terminal block, 2.5 mm², Pin spacing 5.08 mm, gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
  • PCB terminal block
  • 3-pole
  • Wire size: 2.5 mm²
  • Pin spacing: 5.08 mm
  • Color: Gray


Product

Manufacturer Material ID -
237-133
Net Weight -
1.28kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
IN
UNSPSC -
39121410

Technical Specification

Angle PCB/conductor connection -
0°/180° (horizontal)
Connectable conductor cross section fine-strand without cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section multi-wired -
0.5 Square millimetre
Connectable conductor cross section solid-core -
0.5 Square millimetre
Connection type conductor -
Screw connection
Connection type PCB -
Soldering connection
Diameter connection pin -
1 Millimetre
Height -
11 Millimetre
Housing colour -
Grey
Inflammability class of insulation material acc. with UL94 -
V0
Length pin -
4.5 Millimetre
Material connection surface -
Tin
Material insulation body -
Thermoplastic
Modular spacing connections -
5.08 Millimetre
Number of electrical connections -
3
Number of levels -
1
Operating temperature -
-60 Degrees celsius
Over voltage category -
III
Pollution degree -
2
Rated current In -
16 Ampere
Rated surge voltage -
2.5 Kilovolt
Rated voltage -
250 Volt
Type of banding -
None
Type of fastening -
Solder
Type of PCB fastening -
Connecting contact

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
