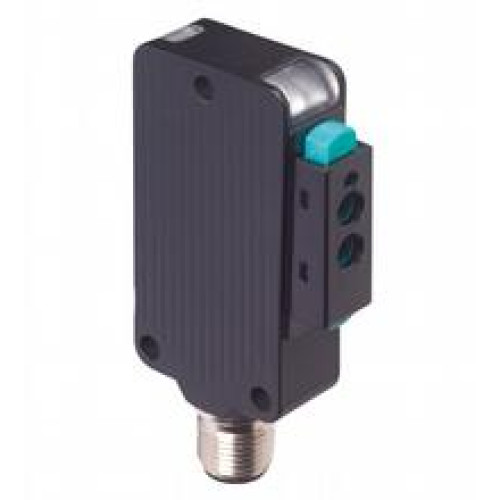

MLV41-LL-IR-1347

Fiber optic sensor - Sensor range: on black (6 %): up to 55 mm on Kodak white, reflection factor 90% up to 160 mm with LLR 04-1.6-

Manufacturer's No: 249775     Manufacturer: Pepperl+Fuchs
Fiber optic sensor - Sensor range: on black (6 %): up to 55 mm on Kodak white, reflection factor 90% up to 160 mm with LLR 04-1.6-0.5-WC3 fiberoptic cable, Light source: IRED, Light type: modulated..

Availability Back Order

£300.40
  • Sensor range:
    • Black (6% reflection): up to 55 mm
    • Kodak white (90% reflection): up to 160 mm with LLR 04-1.6-0.5-WC3 fiberoptic cable
  • Black (6% reflection): up to 55 mm
  • Kodak white (90% reflection): up to 160 mm with LLR 04-1.6-0.5-WC3 fiberoptic cable
  • Light source: IRED
    • Light type: modulated infrared light, 880 nm
  • Light type: modulated infrared light, 880 nm
  • Signal output:
    • 1 PNP output
    • Short-circuit protected, reverse polarity protected, open collector
  • 1 PNP output
  • Short-circuit protected, reverse polarity protected, open collector
  • Switching type: light/dark on switchable
  • Connection: 4-pin, M12 x 1 connector

Read more

  • Operating voltage: 10-30 V DC
  • Ambient temperature: -20 to 60 °C (-4 to 140 °F)

Accessories



Product

Manufacturer Material ID -
249775
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
8536 5019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability Back Order

£300.40
