250-402/350-604

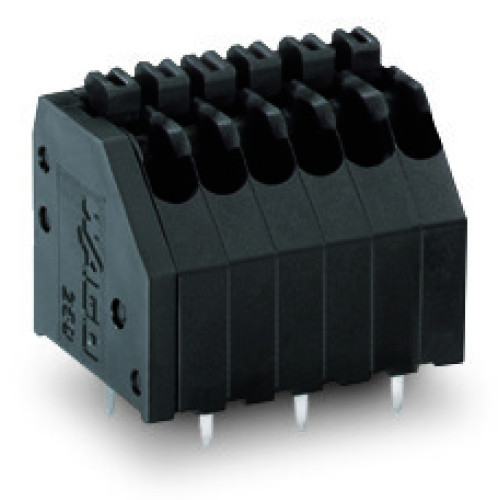

THR PCB terminal block; Push-button; 0.5 mm²; Pin spacing 2.5 mm; 2-pole; Push-in CAGE CLAMP

Manufacturer's No: 250-402/350-604     Manufacturer: WAGO
THR PCB terminal block; Push-button; 0.5 mm²; Pin spacing 2.5 mm; 2-pole; Push-in CAGE CLAMP

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.00

£0.40
  • THR PCB terminal block
  • Push-button
  • Conductor size: 0.5 mm²
  • Pin spacing: 2.5 mm
  • 2-pole configuration
  • Push-in CAGE CLAMP technology


Product

Manufacturer Material ID -
250-402/350-604
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
39269097
Country of Origin -
CH
UNSPSC -
39121410

Technical Specification

Diameter connection pin -
- Millimetre
Degree of protection (IP), mounted -
UN
Height -
13.1 Millimetre
Colour housing -
Black
Rated voltage -
160 Volt
Operation temperature -
-60 Degrees celsius
Type of fastening -
Solder
Inflammability class of insulation material acc. with UL94 -
V2
Number of levels -
1
Rated surge voltage -
2.5 Kilovolt
Over voltage category -
III
Pollution degree -
2
Connection type conductor -
Plug clamp connection
Connection type PCB -
THR connection
Length pin -
3.6 Millimetre
Material connection surface -
Tin
Modular spacing connections -
2.5 Millimetre
Type of banding -
None
Connectable conductor cross section solid-core -
0.14 Square millimetre
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.2 Square millimetre
Connectable conductor cross section multi-wired -
0.2 Square millimetre
Material insulation body -
Thermoplastic
Angle PCB/conductor connection -
45°/135° (downwards inclined)
Type of PCB fastening -
Connecting contact
Rated current In -
4 Ampere
Number of electrical connections -
2

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.00

£0.40
