250-706/000-012

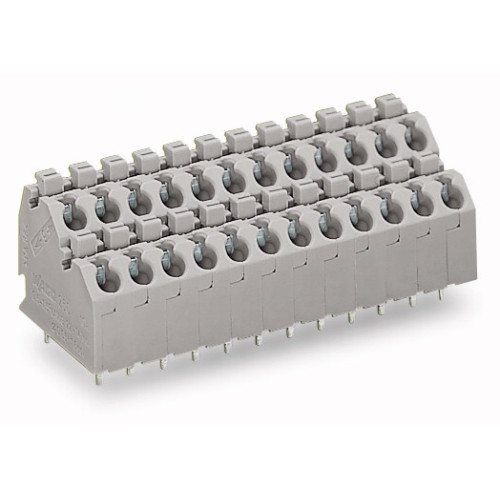

Double-deck PCB terminal block Push-button 1.5 mm² Pin spacing 5 mm 6x2-pole orange

Manufacturer's No: 250-706/000-012     Manufacturer: WAGO
Double-deck PCB terminal block Push-button 1.5 mm² Pin spacing 5 mm 6x2-pole orange

Availability Back Order

POA
  • Double-deck PCB terminal block
  • Push-button
  • Pin spacing: 5 mm
  • Wire size: 1.5 mm²
  • 6 x 2-pole configuration
  • Push-in CAGE CLAMP

Ferrule, Sleeve For 0.5 mm / Awg 22 Uninsulated

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-141
Price £0.02
Back Order

Ferrule, Sleeve For 0.75 mm / Awg 20 Uninsulated

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-102
Price £0.02
Back Order

Ferrule, Sleeve For 0.5 mm / Awg 22 Uninsulated

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-121
Price £0.02
Back Order

Ferrule, Sleeve For 0.75 mm / Awg 20 Uninsulated

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-122
Price £0.02
Back Order

Ferrule, Sleeve For 1 mm / Awg 18 Uninsulated

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-123
Price £0.02
Back Order

Ferrule, Sleeve For 0.5 mm / Awg 22 Uninsulated

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-101
Price £0.02
Back Order

Ferrule, Sleeve For 1 mm / Awg 18 Uninsulated

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-103
Price £0.02
In Stock


Product

Manufacturer Material ID -
250-706/000-012
Net Weight -

Additional Product Information

Commodity Code -
85365005
Country of Origin -
CH
UNSPSC -
39121410

Technical Specification

Diameter connection pin -
- Millimetre
Degree of protection (IP), mounted -
UN
Height -
20.9 Millimetre
Colour housing -
Orange
Rated voltage -
320 Volt
Operation temperature -
-60 Degrees celsius
Type of fastening -
Solder
Inflammability class of insulation material acc. with UL94 -
V0
Number of levels -
2
Rated surge voltage -
4 Kilovolt
Over voltage category -
III
Pollution degree -
2
Connection type conductor -
Plug clamp connection
Connection type PCB -
Soldering connection
Length pin -
4 Millimetre
Material connection surface -
Tin
Modular spacing connections -
5 Millimetre
Type of banding -
None
Connectable conductor cross section solid-core -
0.5 Square millimetre
Connectable conductor cross section fine-strand with cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.75 Square millimetre
Connectable conductor cross section multi-wired -
0.5 Square millimetre
Material insulation body -
Thermoplastic
Angle PCB/conductor connection -
45°/135° (downwards inclined)
Type of PCB fastening -
Connecting contact
Rated current In -
10 Ampere
Number of electrical connections -
6
