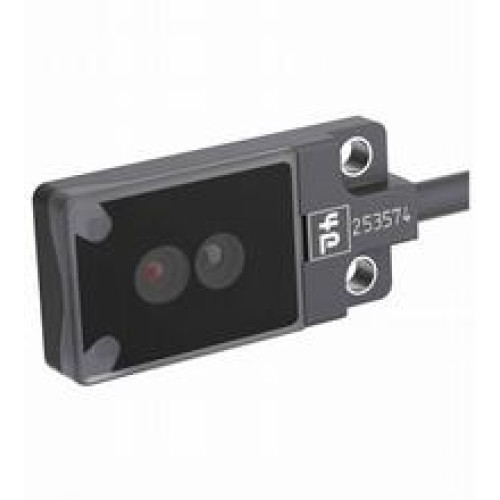

OBE500-R2F-SE0

Thru-beam sensor - Effective detection range: 0 ... 500 mm , Light source: LED, Light type: modulated visible red light , 630 nm,

Manufacturer's No: 253559     Manufacturer: Pepperl+Fuchs
Thru-beam sensor - Effective detection range: 0 ... 500 mm , Light source: LED, Light type: modulated visible red light , 630 nm, Signal output: 1 NPN output, short-circuit protected, reverse polar..

Availability On Request

£130.28
  • Detection Range: 0 to 500 mm
  • Light Source: LED
  • Light Type: Modulated visible red light (630 nm)
  • Signal Output: 1 NPN output (short-circuit and reverse polarity protected, open collector)
  • Switching Type: NO contact / dark-on
  • Connection: 2 m fixed cable
  • Operating Voltage: 10 to 30 V DC
  • Ambient Temperature: -20 to 60 °C (-4 to 140 °F)


Product

Manufacturer Material ID -
253559
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
8536 5019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability On Request

£130.28
Sign in or Register for customer prices.

Additional Information

Data Sheets

Manuals / Links
