2601-1108

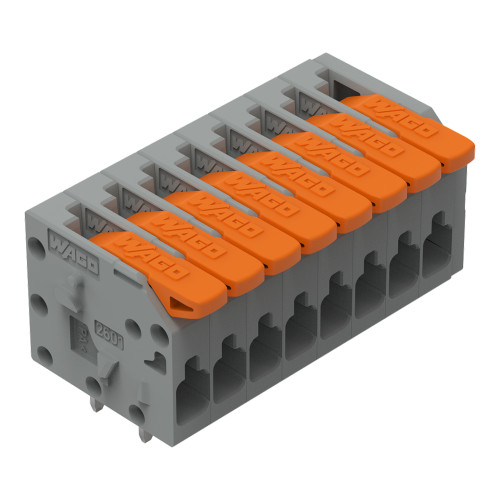

PCB terminal block, lever, 1.5 mm², gray

Manufacturer's No: 2601-1108     Manufacturer: WAGO
PCB terminal block, lever, 1.5 mm², gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
  • PCB terminal block with lever
  • 8-pole design
  • Wire size capacity: 1.5 mm²
  • Pin spacing: 3.5 mm
  • Features Push-in CAGE CLAMP® technology
  • Color: gray


Product

Manufacturer Material ID -
2601-1108
Net Weight -
0.58kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
PL
UNSPSC -
39121410

Technical Specification

Type of fastening -
Solder
Over voltage category -
III
Angle PCB/conductor connection -
0°/180° (horizontal)
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.2 Square millimetre
Connectable conductor cross section multi-wired -
0.14 Square millimetre
Connectable conductor cross section solid-core -
0.14 Square millimetre
Connection type conductor -
Spring clamp connection
Connection type PCB -
Soldering connection
Height -
12.75 Millimetre
Housing colour -
Grey
Inflammability class of insulation material acc. with UL94 -
V0
Length pin -
3.6 Millimetre
Material connection surface -
Tin
Material insulation body -
Thermoplastic
Modular spacing connections -
3.5 Millimetre
Number of electrical connections -
8
Number of levels -
1
Operating temperature -
-60 Degrees celsius
Pollution degree -
2
Rated current In -
17.5 Ampere
Rated surge voltage -
2.5 Kilovolt
Rated voltage -
160 Volt
Type of banding -
None
Type of PCB fastening -
Connecting contact
