2636-1353

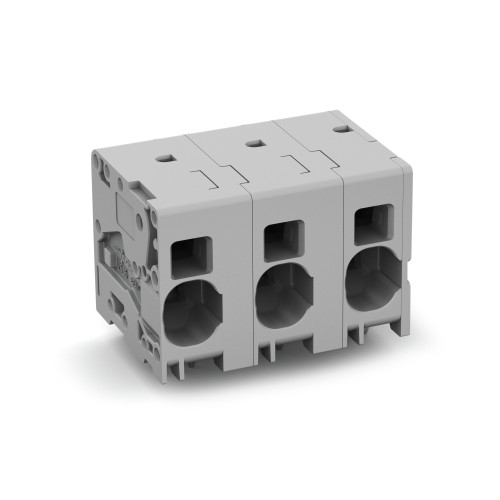

PCB terminal block, 16 mm, Pin spacing 15 mm, 3-pole, Push-in CAGE CLAMP, 16, 00 mm, gray

Manufacturer's No: 2636-1353     Manufacturer: WAGO
PCB terminal block, 16 mm, Pin spacing 15 mm, 3-pole, Push-in CAGE CLAMP, 16, 00 mm, gray

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£5.98
  • PCB terminal block
  • 3-pole
  • Pin spacing: 15 mm
  • Wire size capacity: 16.00 mm²
  • Connection type: Push-in CAGE CLAMP®
  • Color: Gray

Accessories

Ferrule, Sleeve For 2.5 mm / Awg 14 Insulated Blue

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-286
Price £0.15
Back Order

Ferrule, Sleeve For 4 mm / Awg 12 Insulated Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-287
Price £0.15
Back Order

Ferrule, Sleeve For 6 mm / Awg 10 Insulated Yellow

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-288
Price £0.29
Back Order

Ferrule, Sleeve For 10 mm / Awg 8 Insulated Blue

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-289
Price £0.36
Back Order

Ferrule, Sleeve For 16 mm / Awg 6 Insulated Blue

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-210
Price £0.40
Back Order


Product

Manufacturer Material ID -
2636-1353
Net Weight -
1.12kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
PL
UNSPSC -
39121402

Technical Specification

Diameter connection pin -
- Millimetre
Degree of protection (IP), mounted -
UN
Colour housing -
Grey
Operation temperature -
-60 Degrees celsius
Angle PCB/conductor connection -
0°/180° (horizontal)
Connectable conductor cross section fine-strand with cable end sleeve -
0.75 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.75 Square millimetre
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Connection type conductor -
Spring clamp connection
Connection type PCB -
Soldering connection
Height -
28.6 Millimetre
Housing colour -
Grey
Inflammability class of insulation material acc. with UL94 -
V0
Length pin -
4 Millimetre
Material connection surface -
Tin
Material insulation body -
Thermoplastic
Modular spacing connections -
10 Millimetre
Number of electrical connections -
3
Number of levels -
1
Operating temperature -
-60 Degrees celsius
Over voltage category -
III
Pollution degree -
2
Rated current In -
76 Ampere
Rated surge voltage -
8 Kilovolt
Rated voltage -
1000 Volt
Type of banding -
None
Type of fastening -
Solder
Type of PCB fastening -
Connecting contact

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£5.98
