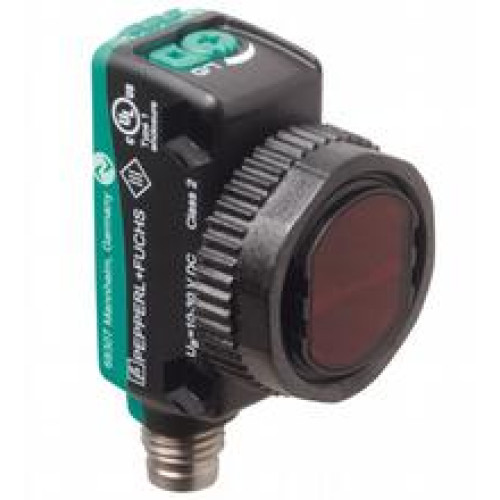

OBD800-R103-EP-IO-V3

Diffuse mode sensor - Detection range: 2 ... 800 mm, Light source: LED, Light type: modulated visible red light, Signal output: 1

Manufacturer's No: 267075-100260     Manufacturer: Pepperl+Fuchs
Diffuse mode sensor - Detection range: 2 ... 800 mm, Light source: LED, Light type: modulated visible red light, Signal output: 1 push-pull (4 in 1) output, short-circuit protected, reverse polarit..

Availability Back Order

£68.05
  • Detection range: 2 to 800 mm
  • Light source: LED, modulated visible red light
  • Signal output: 1 push-pull (4 in 1) output, short-circuit, reverse polarity, and overvoltage protected
  • Interface type: IO-Link via C = pin 4
  • Switching type: Adjustable with default settings as NPN normally open/light-on and PNP normally closed/dark-on
  • Connection: M8 x 1 connector, 3-pin
  • Operating voltage: 10 to 30 V DC
  • Ambient temperature: -40 to 60 °C (-40 to 140 °F)

Accessories



Product

Manufacturer Material ID -
267075-100260
Net Weight -

Additional Product Information

Commodity Code -
8536 5019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability Back Order

£68.05
