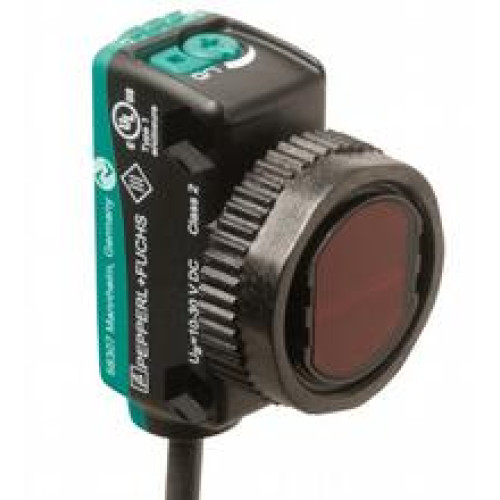

OBT80-R103-2EP-IO-1T-L-Y0351

Triangulation sensor - Detection range: 7 ... 80 mm, Light source: laser diode, Light type: modulated visible red light, Signal ou

Manufacturer's No: 267075-100351     Manufacturer: Pepperl+Fuchs
Triangulation sensor - Detection range: 7 ... 80 mm, Light source: laser diode, Light type: modulated visible red light, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, revers..

Availability On Request

£108.28
  • Detection Range: 7 to 80 mm
  • Light Source: Laser diode
  • Light Type: Modulated visible red light
  • Signal Output: 2 push-pull (4 in 1) outputs, short-circuit, reverse polarity, and overvoltage protected
  • Interface Type: IO-Link via C/Q = pin 4
  • Switching Type: Adjustable with default settings for NPN normally open / light-on and PNP normally closed / dark-on
  • Connection: Fixed cable 300 mm with M8 x 1 male connector; 4-pin
  • Operating Voltage: 10 to 30 V DC
  • Ambient Temperature: -40 to 60 °C (-40 to 140 °F), fixed cable -25 to 60 °C (-13 to 140 °F)
  • Movable cable not suitable for conveyor chains


Product

Manufacturer Material ID -
267075-100351
Net Weight -

Additional Product Information

Commodity Code -
8536 5019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability On Request

£108.28
