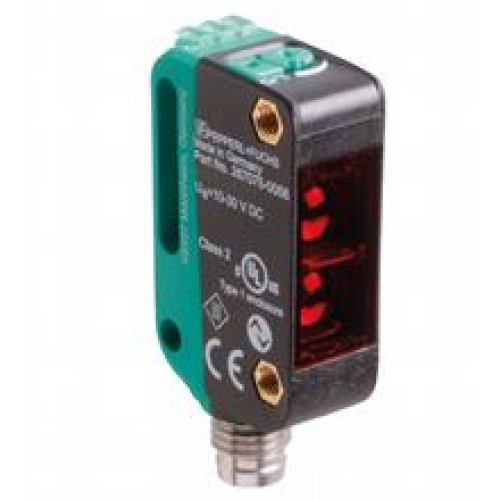

OBT350-R100-2EP1-IO-V31-IR

Triangulation sensor - Detection range: 5 ... 350 mm, Light source: LED, Light type: modulated infrared light 850 nm, Signal outpu

Manufacturer's No: 267075-100496     Manufacturer: Pepperl+Fuchs
Triangulation sensor - Detection range: 5 ... 350 mm, Light source: LED, Light type: modulated infrared light 850 nm, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse p..

Availability Back Order

£98.07
  • Detection range: 5 to 350 mm
  • Light source: LED
  • Light type: Modulated infrared light at 850 nm
  • Signal output: 2 push-pull (4 in 1) outputs, short-circuit, reverse polarity, and overvoltage protected
  • Interface type: IO-Link via C/Q = pin 4
  • Switching type: Adjustable with default settings as follows:
    • C/Q - Pin4: NPN normally closed / dark-on, PNP normally open / light-on
    • IO-Link /Q - Pin2: NPN normally open / light-on, PNP normally closed / dark-on
  • C/Q - Pin4: NPN normally closed / dark-on, PNP normally open / light-on
  • IO-Link /Q - Pin2: NPN normally open / light-on, PNP normally closed / dark-on
  • Connection: M8 x 1 connector, 4-pin
  • Operating voltage: 10 to 30 V DC

Read more

  • Ambient temperature: -40 to 60 °C (-40 to 140 °F)

Accessories



Product

Manufacturer Material ID -
267075-100496
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability Back Order

£98.07
Sign in or Register for customer prices.

Additional Information

Data Sheets

Manuals / Links
