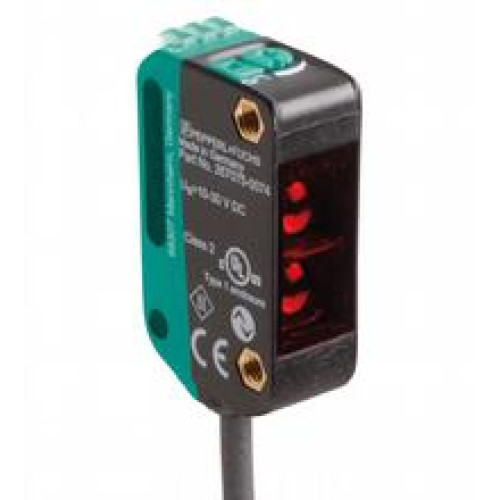

OBT150-R100-2EP1-IO

Triangulation sensor - Detection range: 5 ... 150 mm, Light source: LED, Light type: modulated visible red light, Signal output: 2

Manufacturer's No: 267075-100498     Manufacturer: Pepperl+Fuchs
Triangulation sensor - Detection range: 5 ... 150 mm, Light source: LED, Light type: modulated visible red light, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polar..

Availability On Request

£104.61
  • Detection range: 5 to 150 mm
  • Light source: LED, modulated visible red light
  • Signal output: 2 push-pull outputs (4 in 1), short-circuit, reverse polarity, and overvoltage protected
  • Interface type: IO-Link (via C/Q = BK)
  • Switching type: Adjustable, default setting: NPN normally closed/dark-on, PNP normally open/light-on
  • Connection: 2 m fixed cable
  • Operating voltage: 10 to 30 V DC
  • Ambient temperature: -40 to 60 °C (-40 to 140 °F) fixed cable, -25 to 60 °C (-13 to 140 °F) movable cable not suitable for conveyor chains


Product

Manufacturer Material ID -
267075-100498
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability On Request

£104.61
