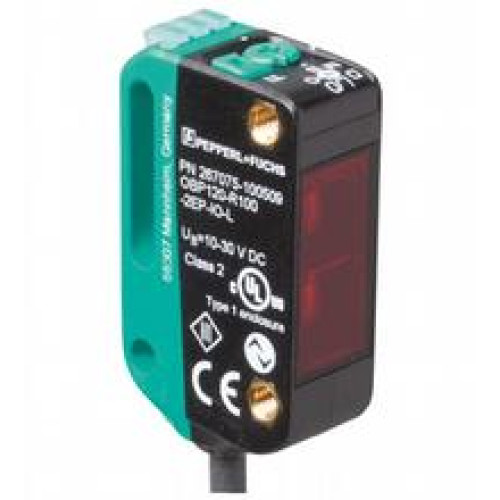

OBP120-R100-2EP-IO-L

Trigger marks sensor - Detection range: 25 ... 120 mm, Optical resolution: Trigger mark [black, 6%] of 1 mm-wide on a white backgr

Manufacturer's No: 267075-100509     Manufacturer: Pepperl+Fuchs
Trigger marks sensor - Detection range: 25 ... 120 mm, Optical resolution: Trigger mark [black, 6%] of 1 mm-wide on a white background [white, 90%]; Contrast difference of min. 50%, Light source: l..

Availability On Request

£253.26
  • Detection range: 25 to 120 mm
  • Optical resolution: Trigger mark [black, 6%] of 1 mm width on a white background [white, 90%]; Contrast difference of minimum 50%
  • Light source: Laser diode
  • Light type: Modulated visible red light
  • Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected
  • Interface type: IO-Link (via C/Q = pin 4)
  • Switching type: Adjustable; Default setting: C/Q - Pin4: NPN normally open / light-on, PNP normally closed / dark-on, IO-Link /Q - Pin2: NPN normally closed / dark-on, PNP normally open / light-on
  • Connection: 2 m fixed cable
  • Ambient temperature: -40 to 60 °C (-40 to 140 °F); Fixed cable -25 to 60 °C (-13 to 140 °F); Movable cable not suitable for conveyor chains


Product

Manufacturer Material ID -
267075-100509
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability On Request

£253.26
