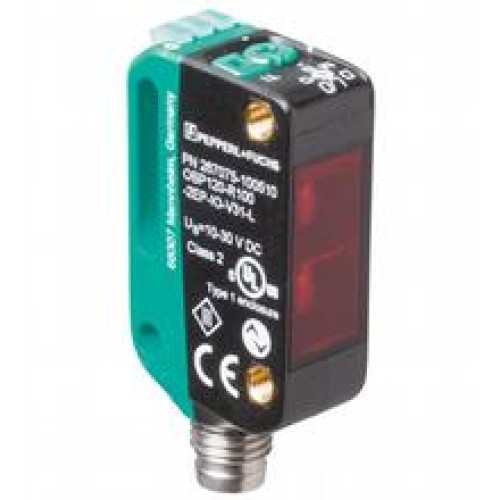

OBP120-R100-EP-IO-V3-L

Trigger marks sensor - Detection range: 25 ... 120 mm, Optical resolution: Trigger mark [black, 6%] of 1 mm-wide on a white backgr

Manufacturer's No: 267075-100511     Manufacturer: Pepperl+Fuchs
Trigger marks sensor - Detection range: 25 ... 120 mm, Optical resolution: Trigger mark [black, 6%] of 1 mm-wide on a white background [white, 90%]; Contrast difference of min. 50%, Light source: l..

Availability On Request

£253.26
  • Detection range: 25 to 120 mm
  • Optical resolution: Trigger mark of 1 mm width on white background with a contrast difference of minimum 50%
  • Light source: Laser diode
  • Light type: Modulated visible red light
  • Signal output: 1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected, overvoltage protected
  • Interface type: IO-Link via C/Q = pin 4
  • Switching type: Adjustable with default setting as NPN normally open / light-on, PNP normally closed / dark-on, IO-Link
  • Connection: M8 x 1 connector, 3-pin
  • Ambient temperature: -40 to 60 °C (-40 to 140 °F)


Product

Manufacturer Material ID -
267075-100511
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability On Request

£253.26
