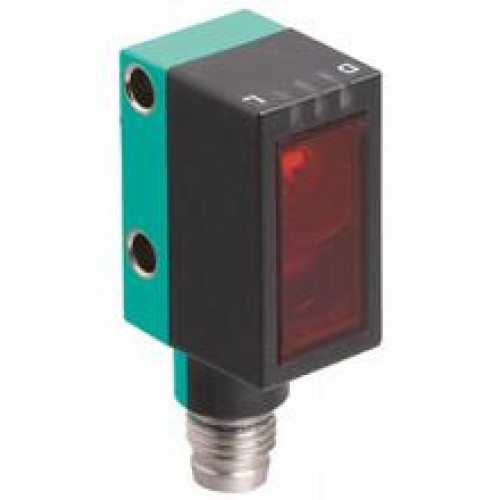

OBT20-R101-2P1-IO-V31-IR

Triangulation sensor - Detection range: 7 ... 20 mm, Light source: LED, Light type: modulated infrared light 850 nm, Signal output

Manufacturer's No: 267075-100513     Manufacturer: Pepperl+Fuchs
Triangulation sensor - Detection range: 7 ... 20 mm, Light source: LED, Light type: modulated infrared light 850 nm, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse po..

Availability On Request

£129.18
  • Detection Range: 7 to 20 mm
  • Light Source: LED
  • Light Type: Modulated Infrared Light at 850 nm
  • Signal Output: 2 Push-Pull (4 in 1) Outputs
  • Interface Type: IO-Link (via C/Q = BK)
  • Switching Type:
    • C/Q - Pin4: NPN Normally Closed (Dark-On), PNP Normally Open (Light-On)
    • IO-Link /Q - Pin2: NPN Normally Open (Light-On), PNP Normally Closed (Dark-On)
  • Connection: M8 x 1 Connector, 4-Pin
  • Operating Voltage: 10 to 30 V DC
  • Ambient Temperature: -40 to 60 °C (-40 to 140 °F)


Product

Manufacturer Material ID -
267075-100513
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability On Request

£129.18
