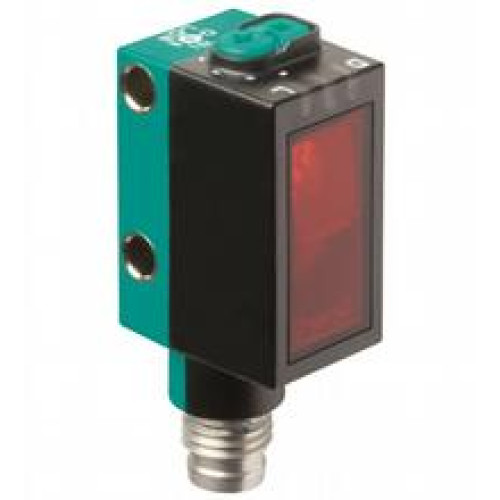

OBG5000-R101-2EP1-IO-V31

Retroreflective sensor - Effective detection range: 0 ... 3.5 m in TEACH mode ; 0 ... 5 m at switch position "N", Light

Manufacturer's No: 267075-100542     Manufacturer: Pepperl+Fuchs
Retroreflective sensor - Effective detection range: 0 ... 3.5 m in TEACH mode ; 0 ... 5 m at switch position "N", Light source: LED, Light type: modulated visible red light, Signal output: 2 push-p..

Availability Back Order

£117.32
  • Detection Range: - TEACH Mode: 0 to 3.5 m - Switch Position "N": 0 to 5 m

  • Light Source: LED - Light Type: Modulated visible red light

  • Signal Output: - 2 push-pull (4 in 1) outputs - Short-circuit, reverse polarity, and overvoltage protected

  • Interface Type: IO-Link (via C/Q = pin 4)

  • Switching Type: - Adjustable - Default Setting: - C/Q - Pin4: NPN normally closed / light-on, PNP normally open / dark-on - IO-Link /Q - Pin2: NPN normally open / dark-on, PNP normally closed / light-on

  • Connection: M8 x 1 connector, 4-pin

  • Operating Voltage: 10 to 30 V DC

  • Ambient Temperature: -20 to 60 °C (-4 to 140 °F)

Accessories



Product

Manufacturer Material ID -
267075-100542
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability Back Order

£117.32
